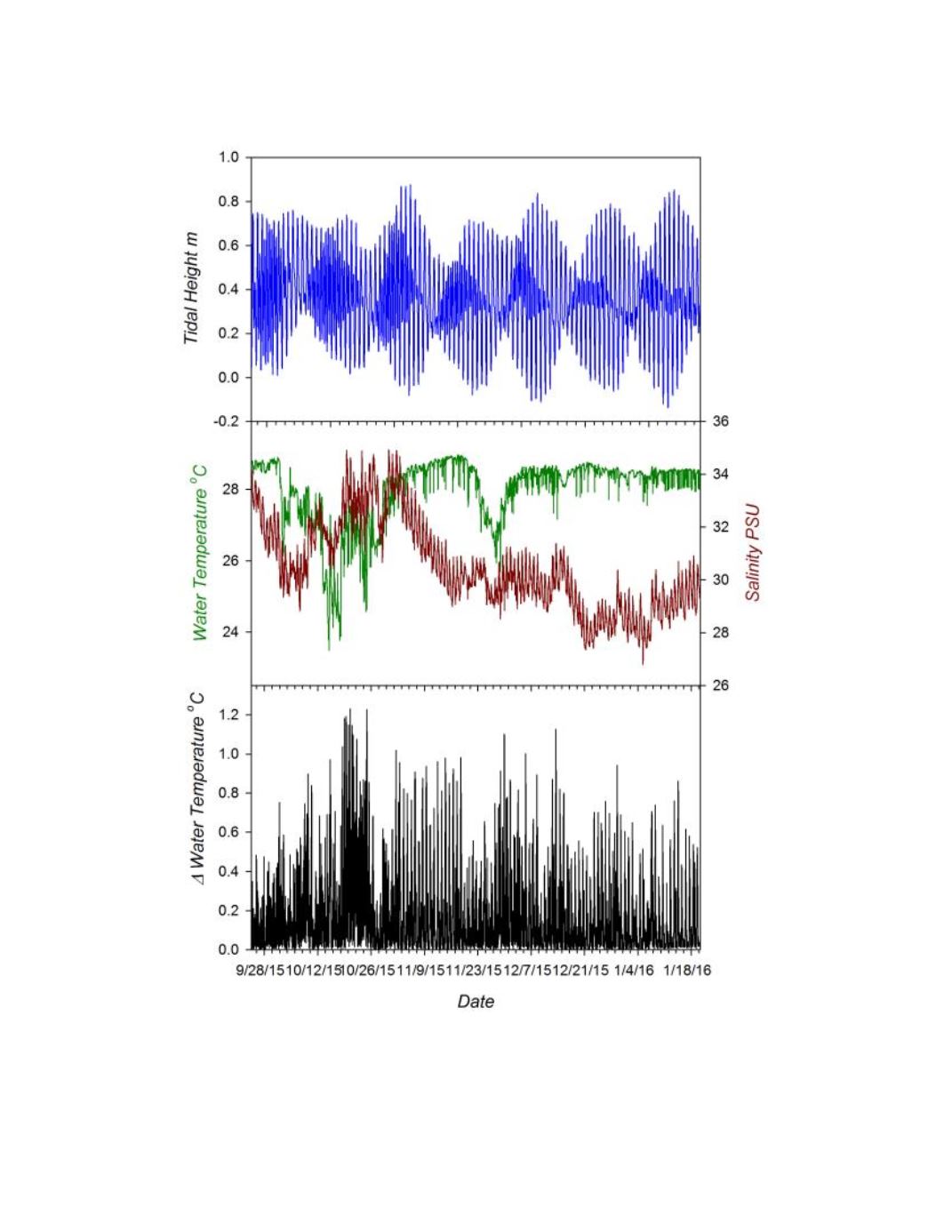

Figure 7.
Environmental conditions encountered during the 4 month HIMB deployment on the fringing reef flat off
Coconut Island Test sensor array deployed at 1 m fixed depth, variation in local tidal heights indicate active water
flow around instrument (
Top Panel
). Variation in salinity () and temperature (green) at depth of instrument sensor
detected by an SBE 26 and two RBR Solo thermistors (
Middle Panredel
). Temperature range determined from max-
min temperatures detected by RBR thermistors spanning instrument sensor array (
Bottom Panel
).
