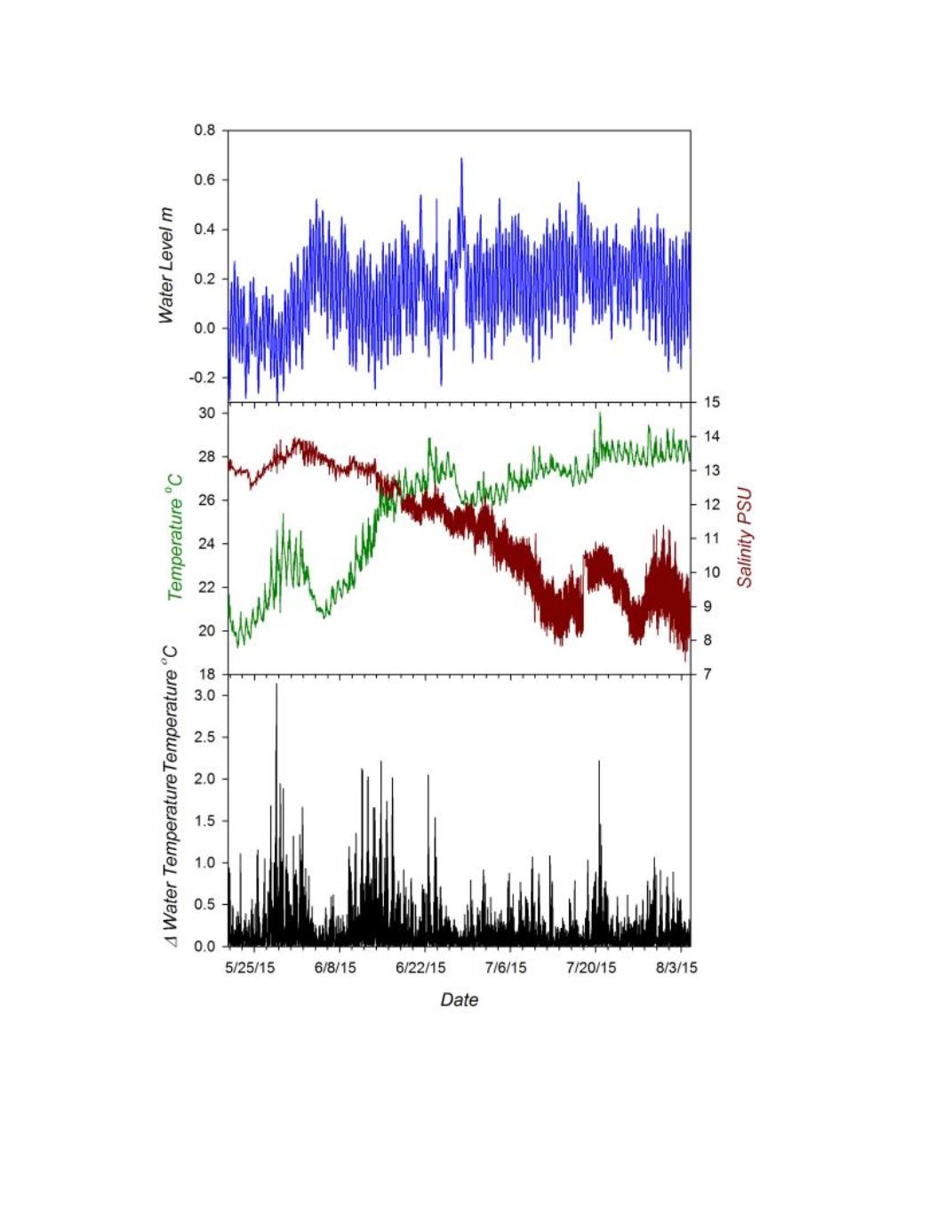

Figure 4.
Environmental conditions encountered during the 11 week CBL floating dock deployment. Test
sensor array deployed at 1 m fixed depth, variation in local tidal heights indicate active water flow around
instrument (
Top Panel
). Variation in salinity (red) and temperature (green) at depth of instrument sensor
detected by an SBE 26 and two RBR Solo thermistors (
Middle Panel
). Temperature range determined from
max-min temperatures detected by RBR thermistors spanning instrument sensor array (
Bottom Panel
).
