Ref. No. [UMCES] CBL 2016-015
ACT VS16-06
42

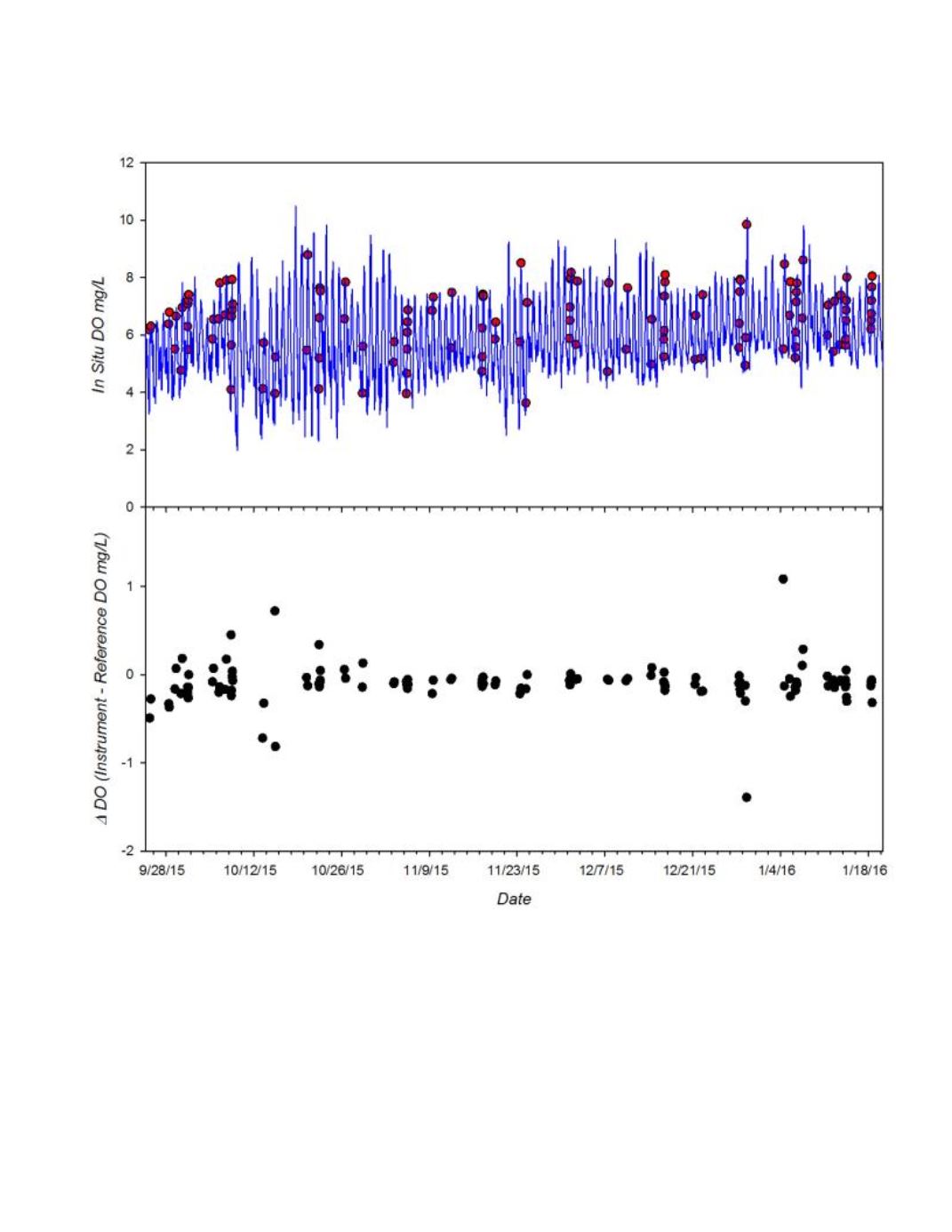

Figure 8
. Top panel:
Time series of DO measured by EXO2 deployed during the 18 week HIMB field trial.
Continuous DO recordings from instrument (blue line) and DO of adjacent grab samples determined by Winkler
Titrations (red circles.)
Bottom Panel:
T
ime series of the difference between the EXO2 and reference
measurements for each matched pair (Instrument DO mg/L – Reference DO mg/L) in the range of ±
2mg/L DO (n=129 of a total possible 129 observations).
