Ref. No. [UMCES] CBL 2016-015
ACT VS16-06
37

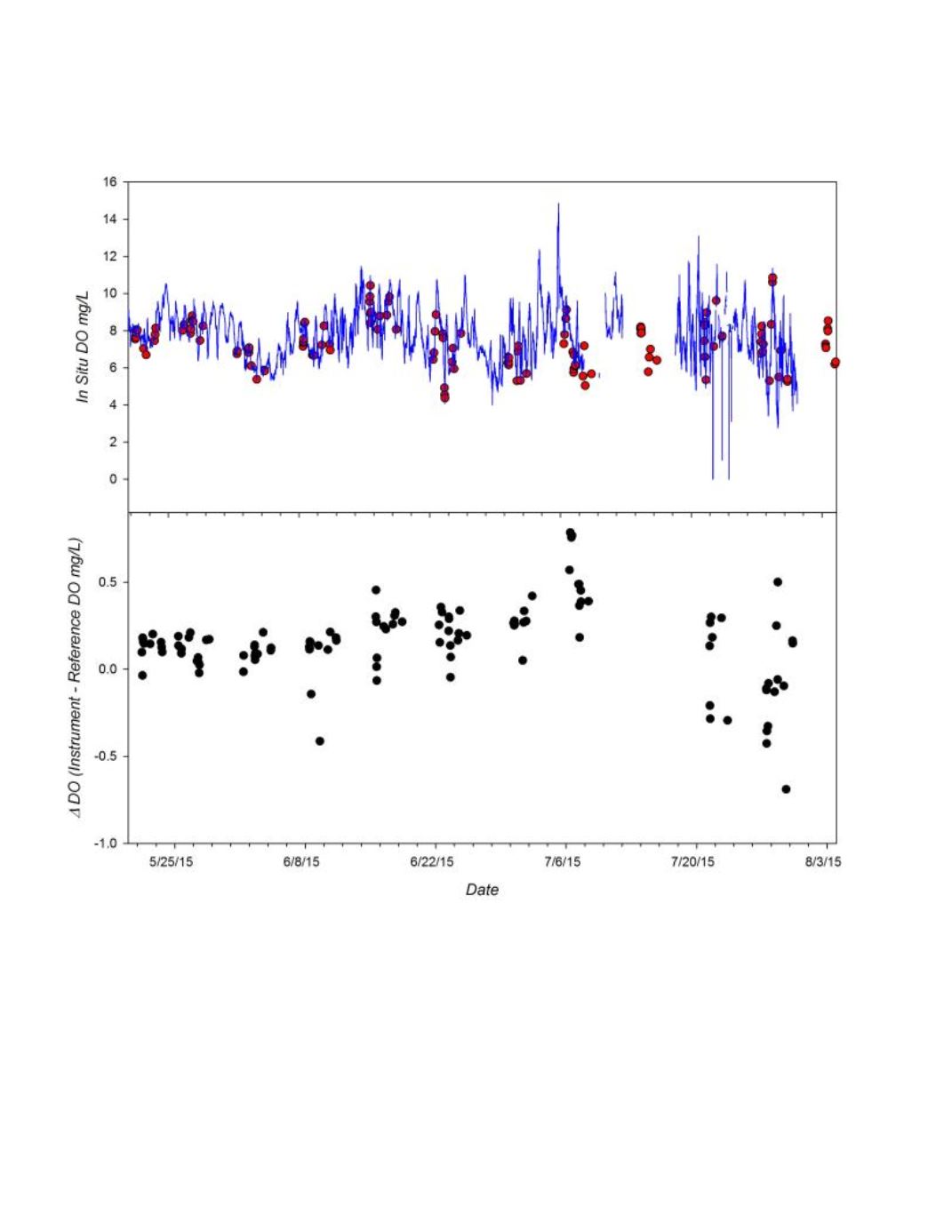

Figure 5.
Time series of DO measured by the EXO2 during the 12 week CBL field trial.
Top Panel
:
Continuous DO recordings from instrument (blue line) and DO of adjacent grab samples determined by
Winkler titration (red circles).
Bottom Panel
: The difference in measured DO relative to reference samples
(Instrument DO mg/L – Reference DO mg/L) observed during deployment.
