Ref. No. [UMCES] CBL 2017-050
ACT VS17-05
29

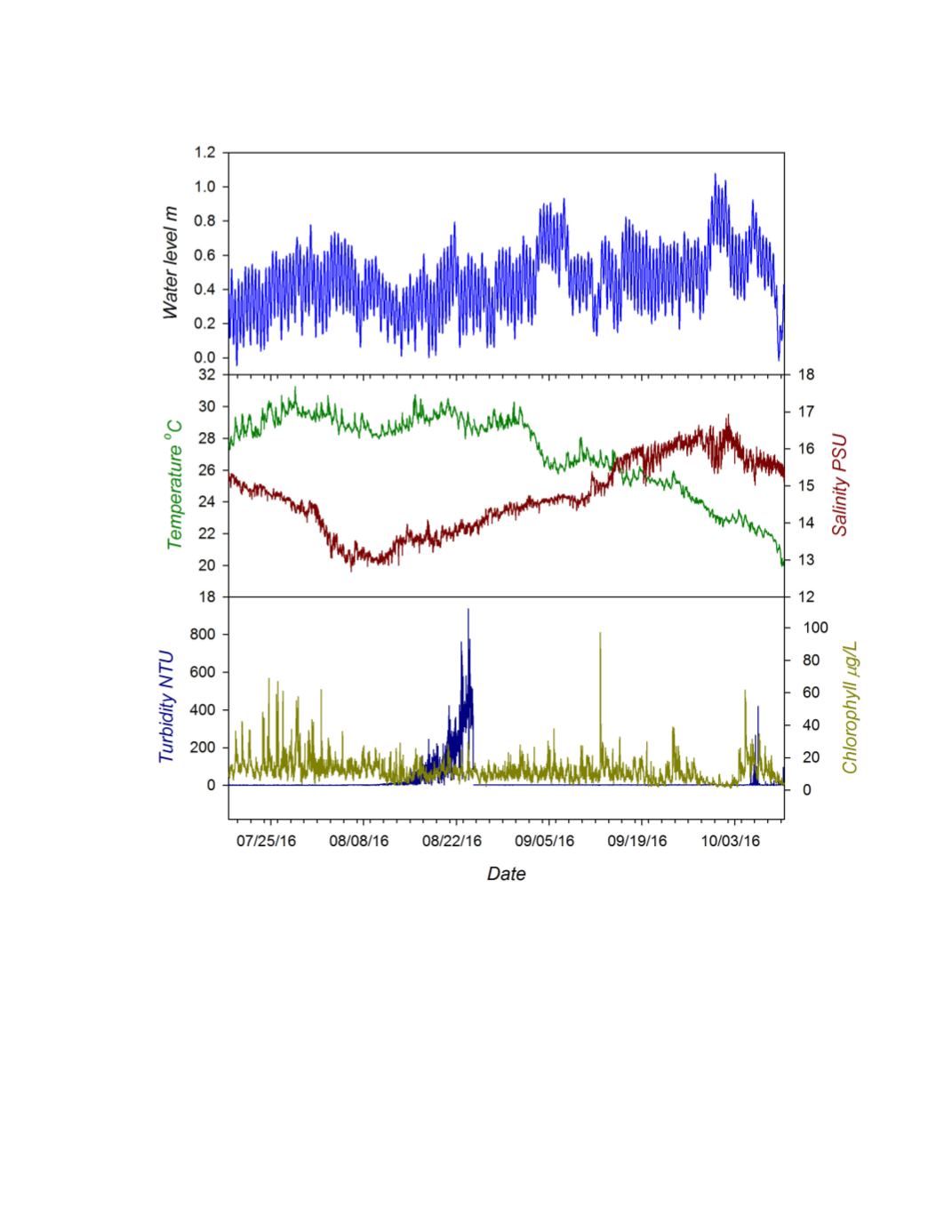

Figure
14.
Environmental conditions encountered during the 84 day CBL floating dock deployment. Test
sensor array deployed at 1 m fixed depth, variation in local tidal heights indicate active water flow around
instrument (
Top Panel
). Variation in temperature (green) and salinity (red) at depth of instrument sensor
detected by an EXO2 sonde and two RBR Solo thermistors (
Middle Panel
). Variation in turbidity (blue)
and chlorophyll (dark yellow) at depth of instrument sensor detected by an EXO2 sonde (
Bottom Panel
).
