Lab Temperature Challenge

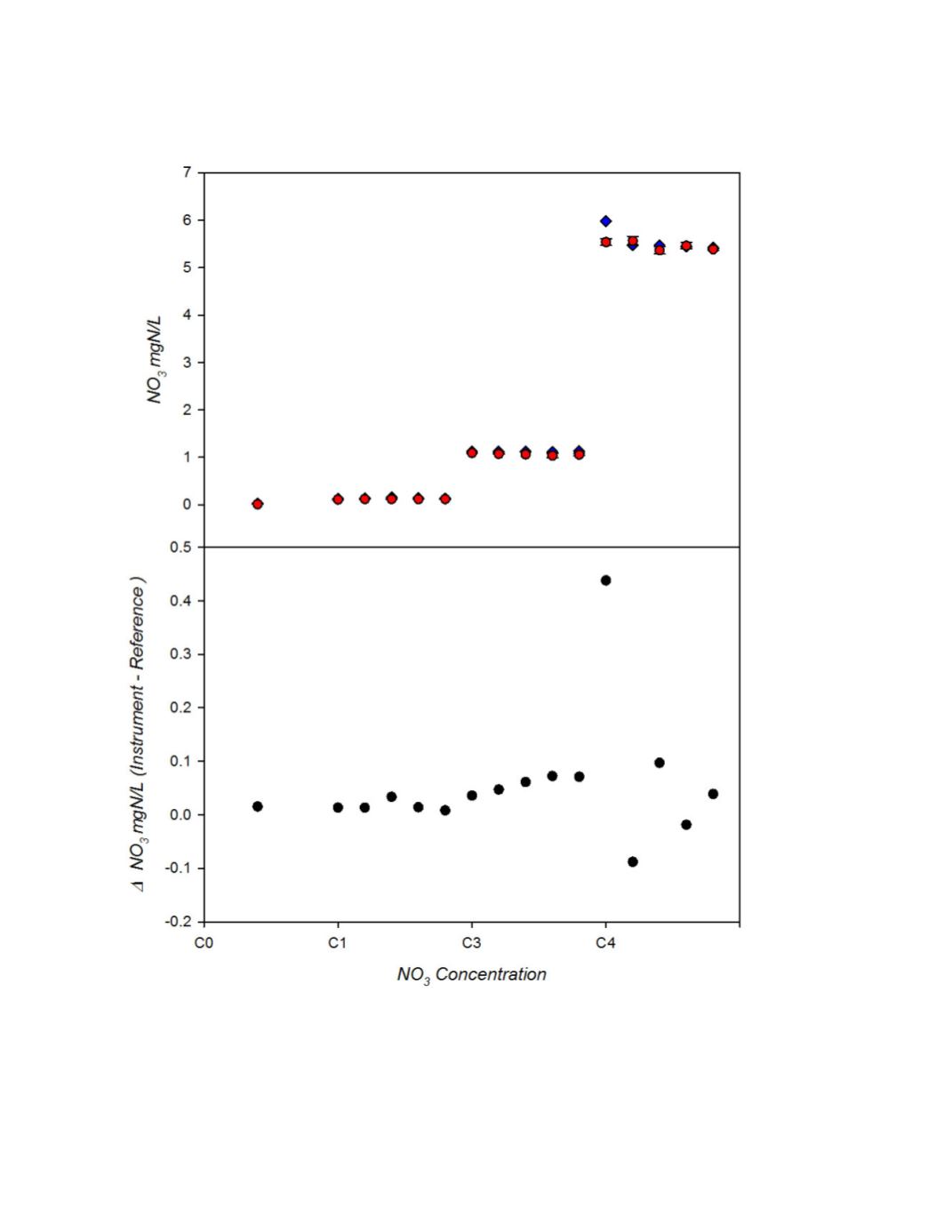

Figure 3.
Top Panel:
Plot
of instrument (blue dots) and reference (red dots) measurements of NO
3
(mgN/L)
in the temperature response challenge covering concentration ranges C2 – C4 measured at 5
o
C test
conditions. Five replicate measurements were made at each concentration level along with one measurement
at ambient level
. Bottom Panel:
Plot of the absolute difference between Real-NO3 and reference
measurement.
