21 / 59
Ref. No. [UMCES] CBL 2015-008
ACT VS15-01
21

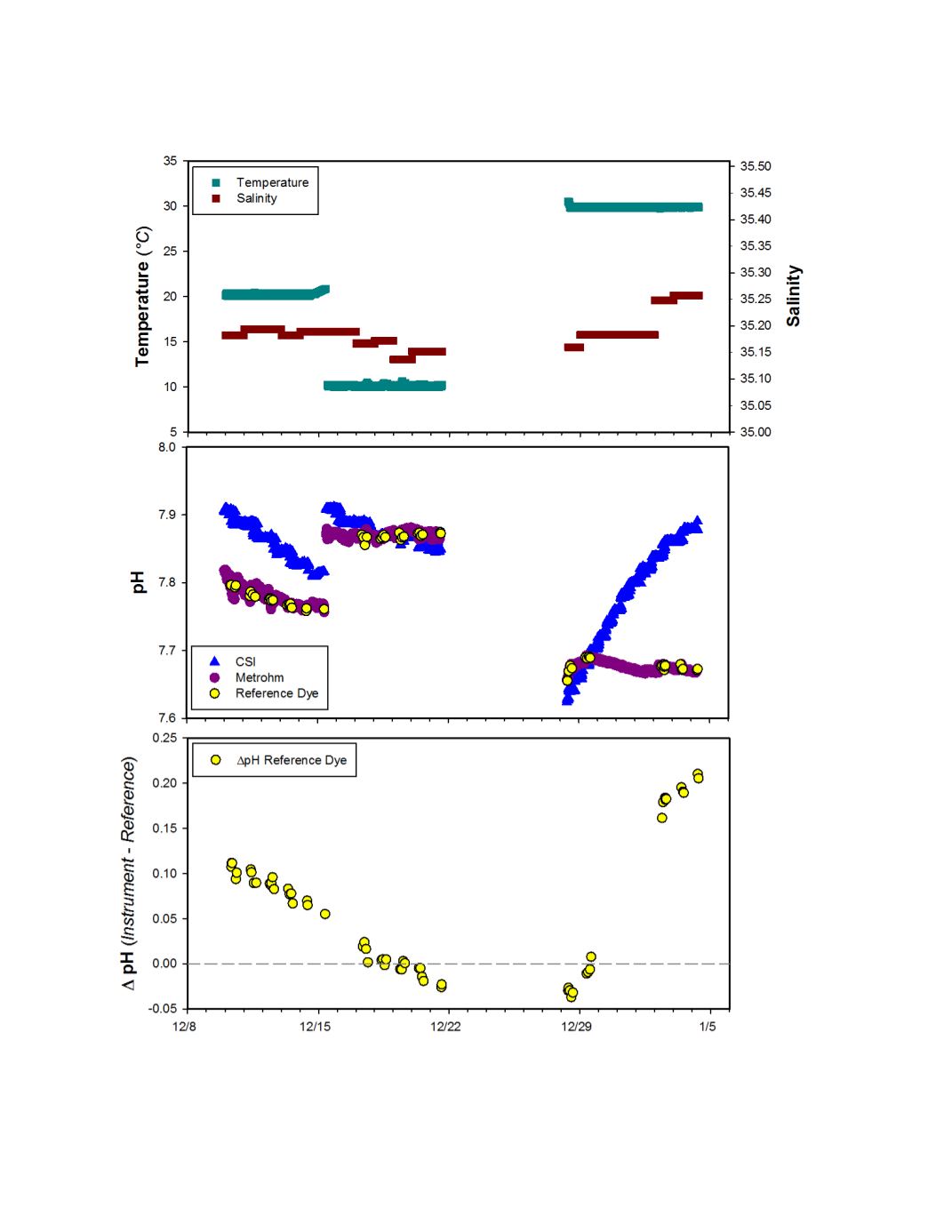

Figure 4.
Time series results of the Campbell Scientific Instruments (CSI) pH sensor for the
stable portion of the seawater trials. Measurements taken during temperature and pH shifts
have been removed. Panel (a) temperature and salinity conditions during the seawater trials;
panel (b) measured pH from the CSI pH plotted against both Metrohm and Dye reference pH
measurements; and, panel (c) the difference between CSI and reference pH values.
A.
C.
B.
