22 / 59
Ref. No. [UMCES] CBL 2015-008
ACT VS15-01
22

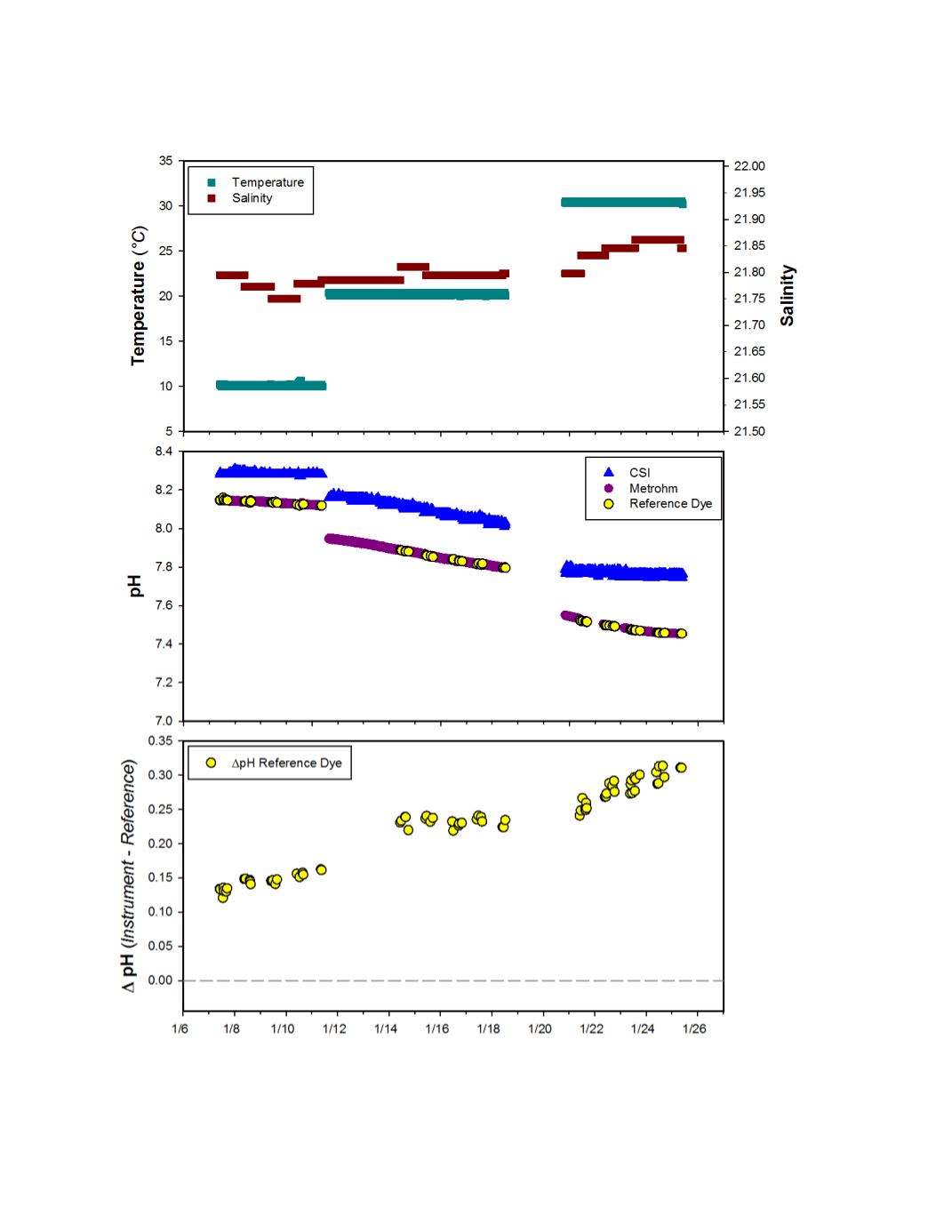

Figure 5.
Time series results of the Campbell Scientific Instruments (CSI) pH sensor for the
stable portion of the brackish water trials. Measurements taken during temperature and pH
shifts have been removed. Panel (a) temperature and salinity conditions during the seawater
trials; panel (b) measured pH from the CSI pH plotted against both Metrohm and Dye reference
pH measurements; and, panel (c) the difference between CSI and reference pH values.
A.
C.
B.
