Performance Verification Statement for the JFE AROUSB AND AROW-USB Dissolved Oxygen Sensors

61 / 73

Ref. No. [UMCES] CBL 2016-010
ACT VS16-01
61

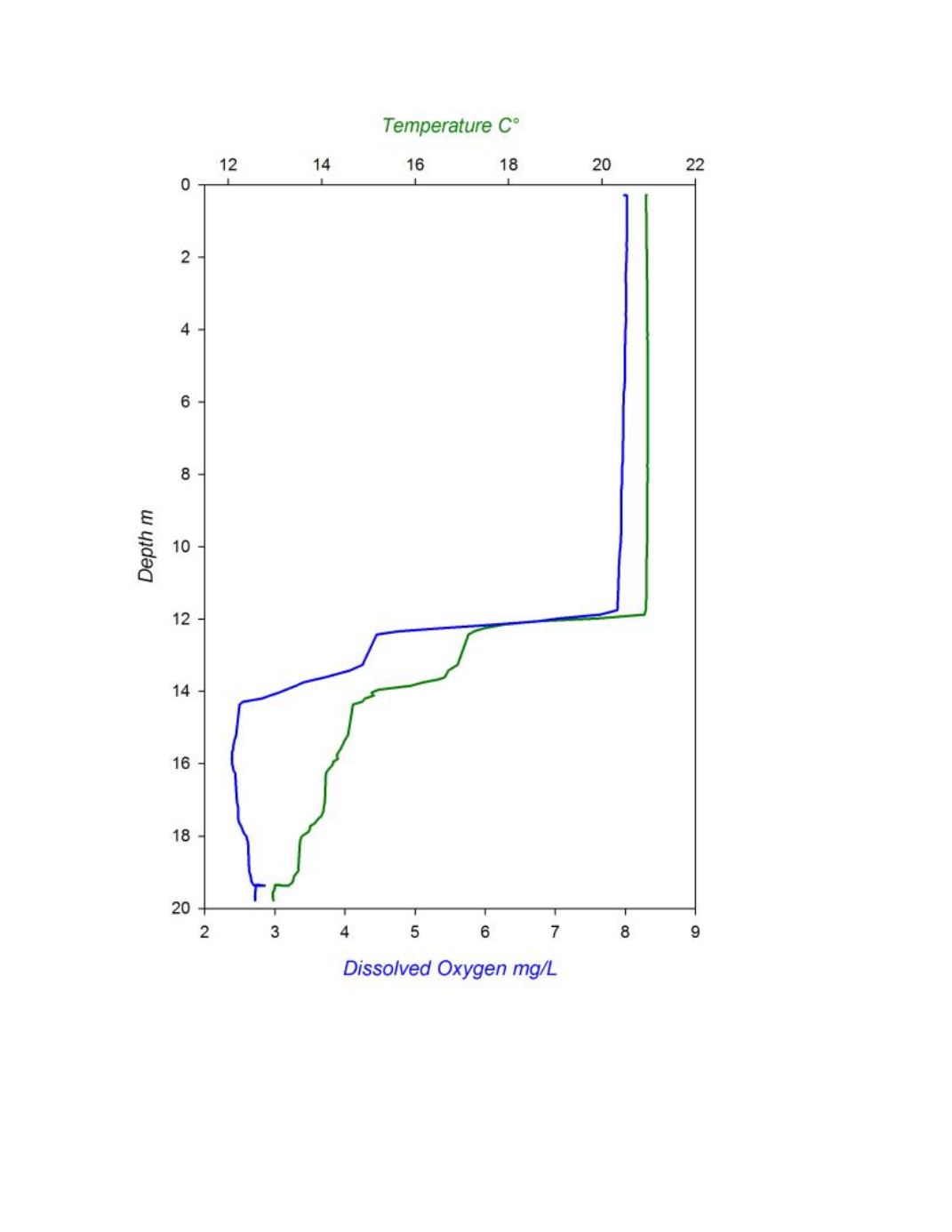

Figure 12 . Temperature and DO concentration profiles for Muskegon Lake. Values were obtained from the
average of multiple instruments sampling at 1s frequency. The hypolimnion was approximately 8m thick and
contained depressed DO levels of less than 3 mg/L.
