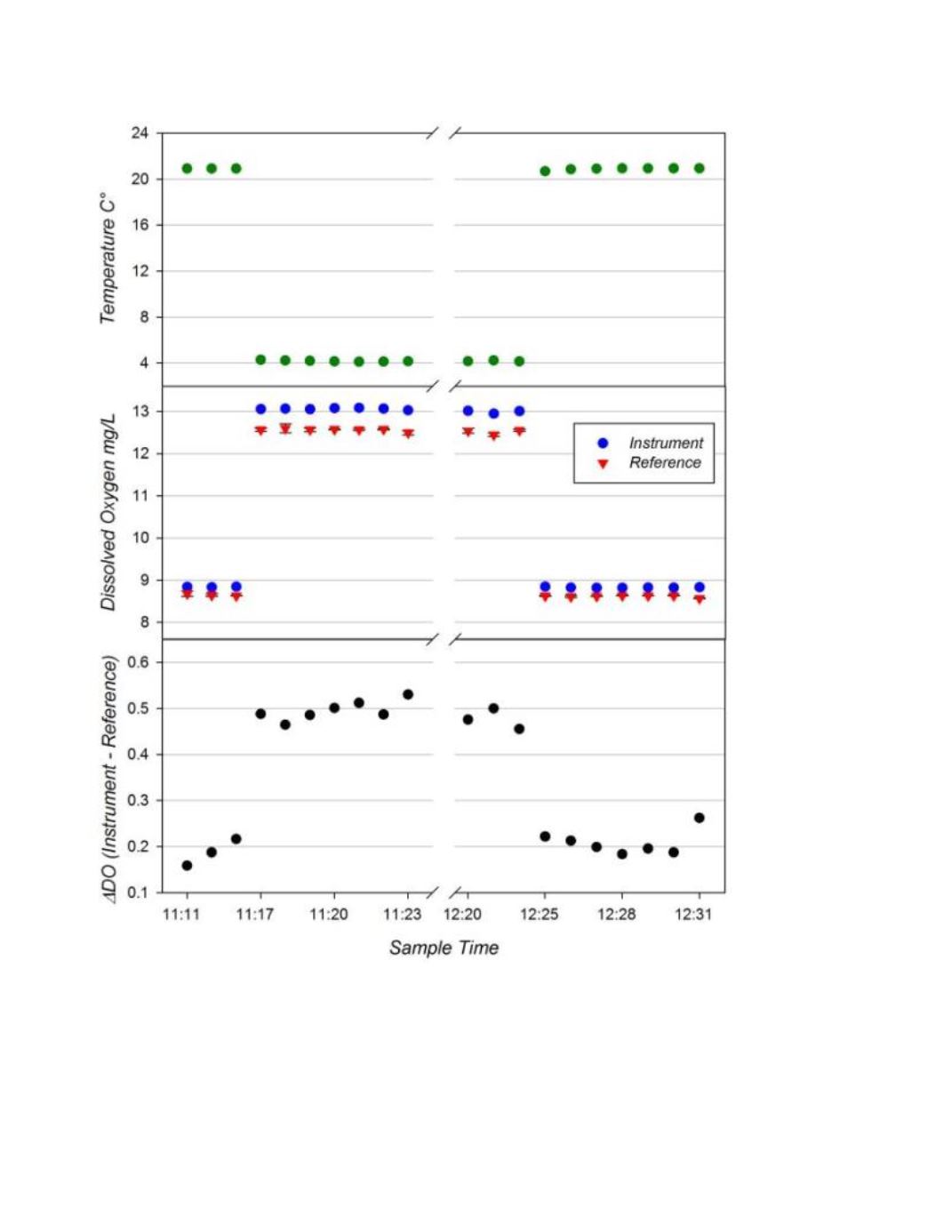

Figure 16.
Top panel:
Lake Michigan temperature data at sample snap.
Middle panel:
DO recordings from
instrument (blue dot) and DO of adjacent sample snaps determined by Winkler Titrations (red triangles.)
Bottom
panel:
Time series of the difference between the JFE AroUSB and reference measurements for each matched
pair. Trial 1 and 2 are plotted on the same graph and separated by the axis break.
