Ref. No. [UMCES] CBL 2016-010
ACT VS16-01
64

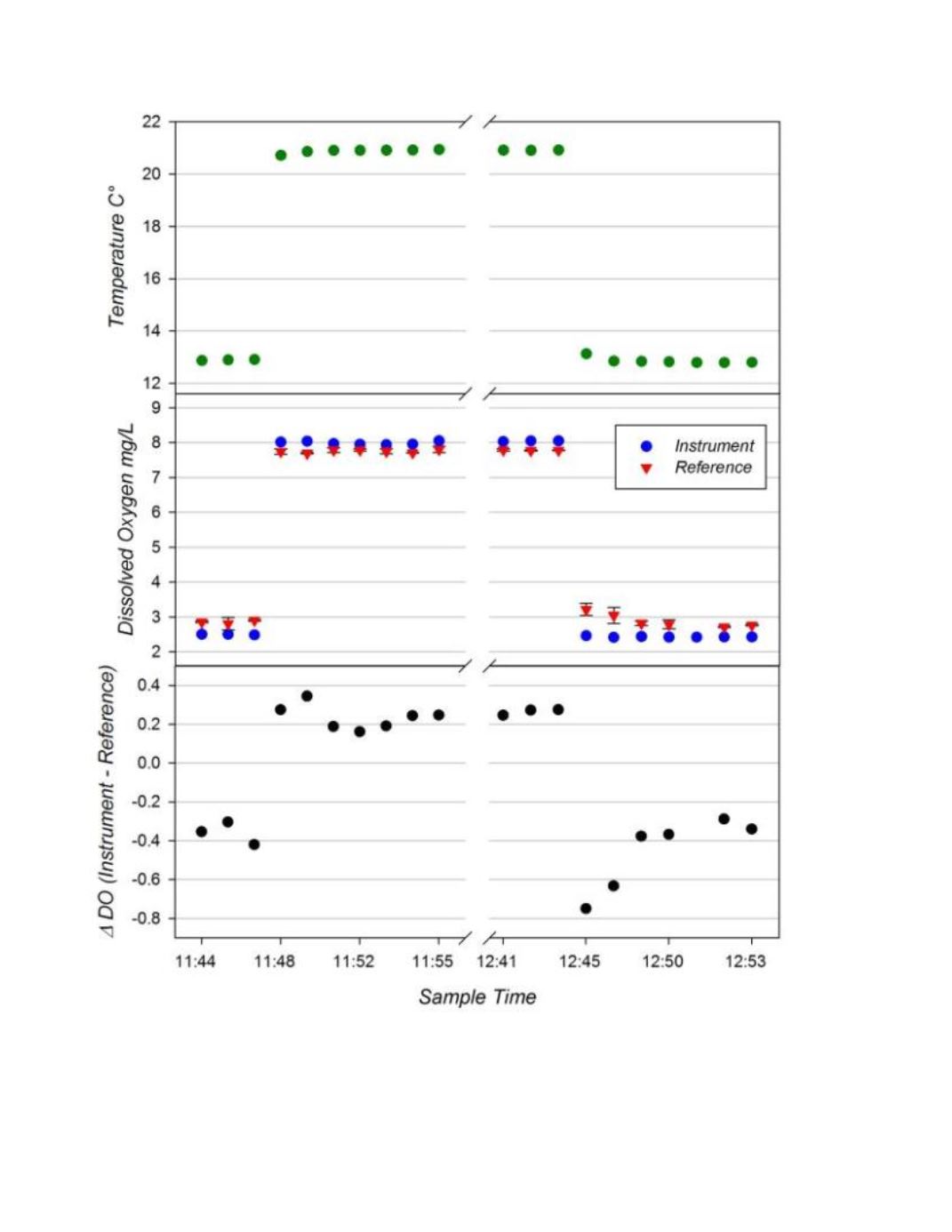

Figure 15.
Top panel:
Muskegon Lake temperature data at sample snap.
Middle panel:
DO recordings from
instrument (blue dot) and DO of corresponding reference samples determined by Winkler Titrations (red
triangles.)
Bottom panel:
Time series of the difference between the JFE AroUSB and reference measurements
for each matched pair. Cast 2 and 3 are plotted on the same graph and separated by the axis break.
