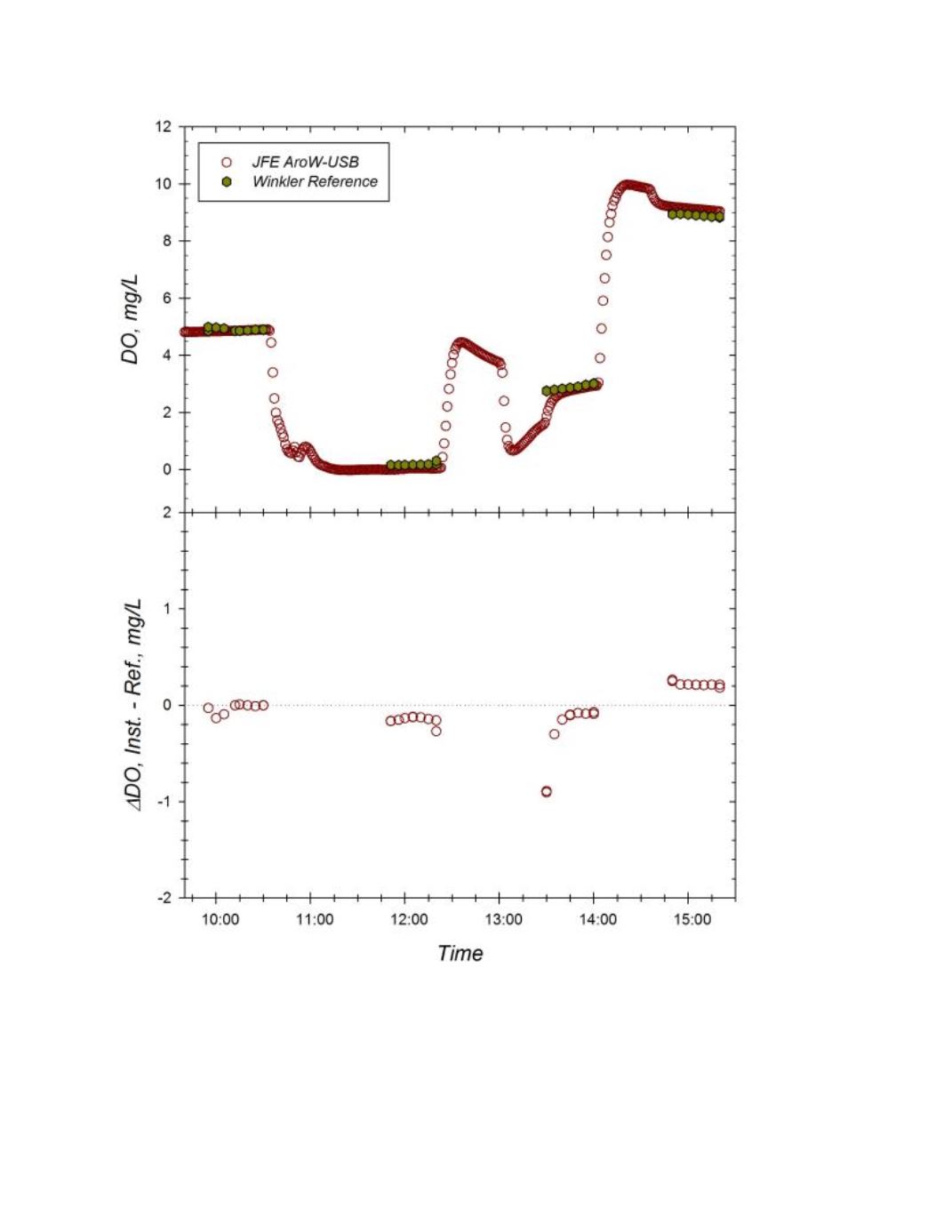

Figure S. Response of JFE AroW-USB (sn 0181) to changing dissolved oxygen concentrations at 30.2 oC and S=0.00. Top
Panel: Time series of instrument readings and Winkler reference samples drawn at level of sensor foil in well-mixed test
tanks. Bottom Panel: Corresponding offset between instrument reading and Winkler DO reference sample during the trial.
Dotted line represents zero offset from reference.
