Ref. No. [UMCES] CBL 2016-010
ACT VS16-01
34

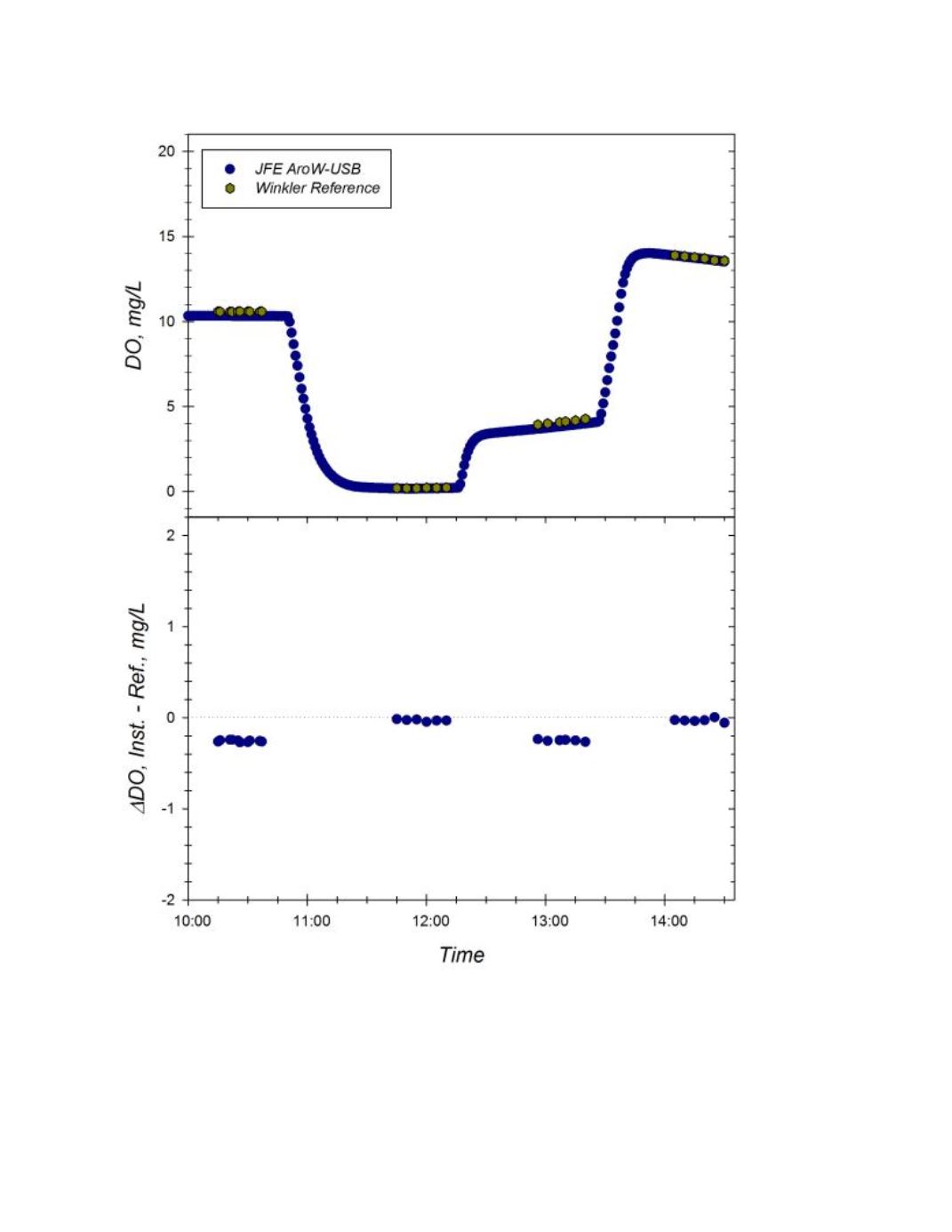

Figure R
. Response of JFE AroW-USB (sn 0181) to changing dissolved oxygen concentrations at 5.2
o
C and S=34.77.
Top
Panel
: Time series of instrument readings and Winkler reference samples drawn at level of sensor foil in well-mixed test
tanks.
Bottom Panel
: Corresponding offset between instrument reading and Winkler DO reference sample during the trial.
Dotted line represents zero offset from reference. Offsets beyond 2 mg/L are excluded.
