24 / 47
Ref. No. [UMCES] CBL 2015-009
ACT VS15-02
24

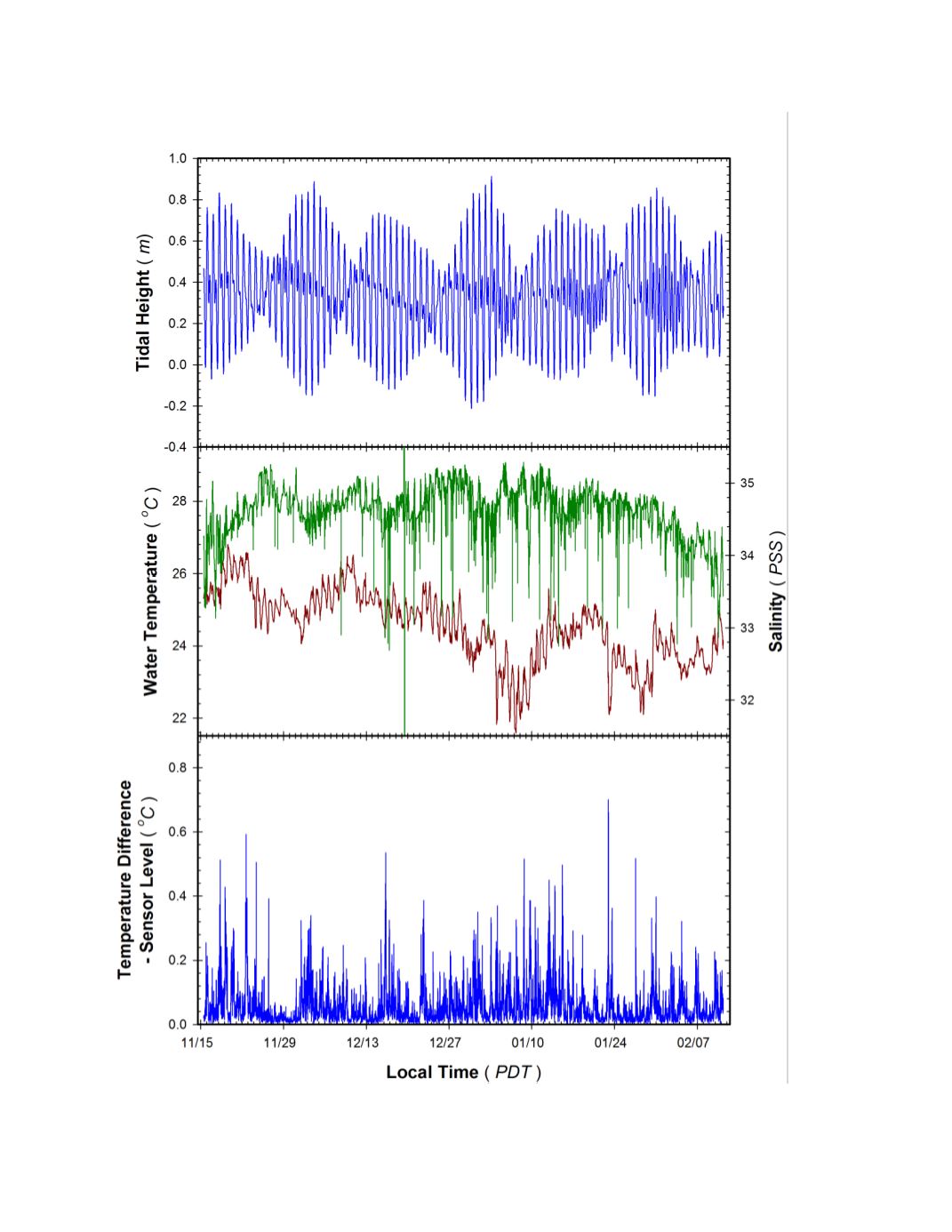

Figure 6.
Environmental conditions encountered during the 3 month HIMB offshore deployment on the NOAA
CRIMP Buoy. Test sensor array deployed at 1 m fixed depth, variation in local tidal heights indicate active water
flow around instrument (
Top Panel
). Variation in salinity (green) and temperature (red) at depth of instrument sensor
detected by an SBE 26 and two RBR Solo thermistors (
Middle Panel
). Temperature range determined from max-min
temperatures detected by RBR and SBE thermistors spanning instrument sensor array (
Bottom Panel
).
