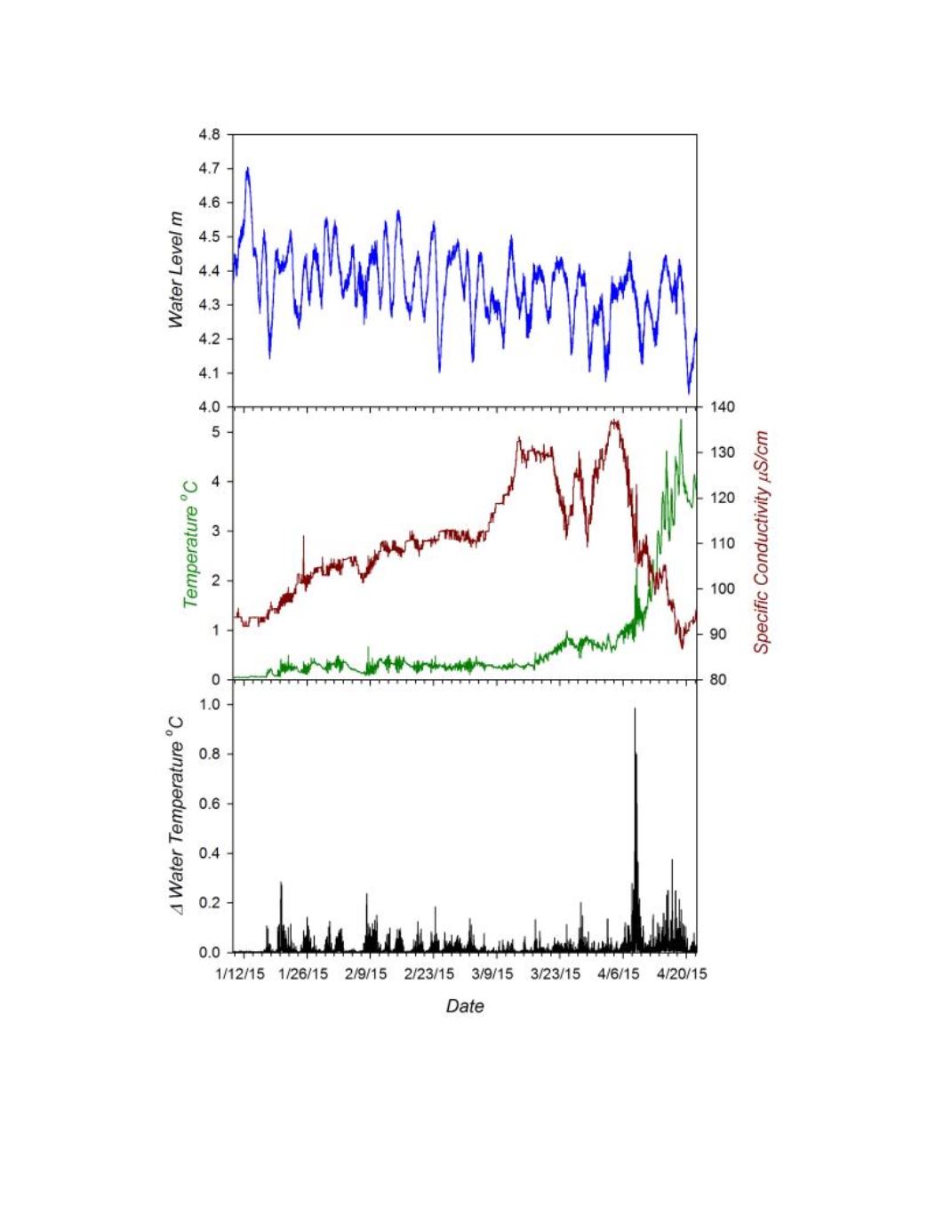

Figure 1.
Environmental conditions encountered during deployment at the MTU site. Test sensor array deployed at 4.5 m
fixed depth, variation in local water levels indicate active water flow around instruments (
Top Panel
). Variation in specific
conductivity (red) and temperature (green) at depth of instrument sensor detected by an SBE 26 and two RBR Solo
thermistors (
Middle Panel
). Temperature range determined from max-min temperatures detected by 4 RBR thermistors
spanning instrument sensor array (
Bottom Panel
).
