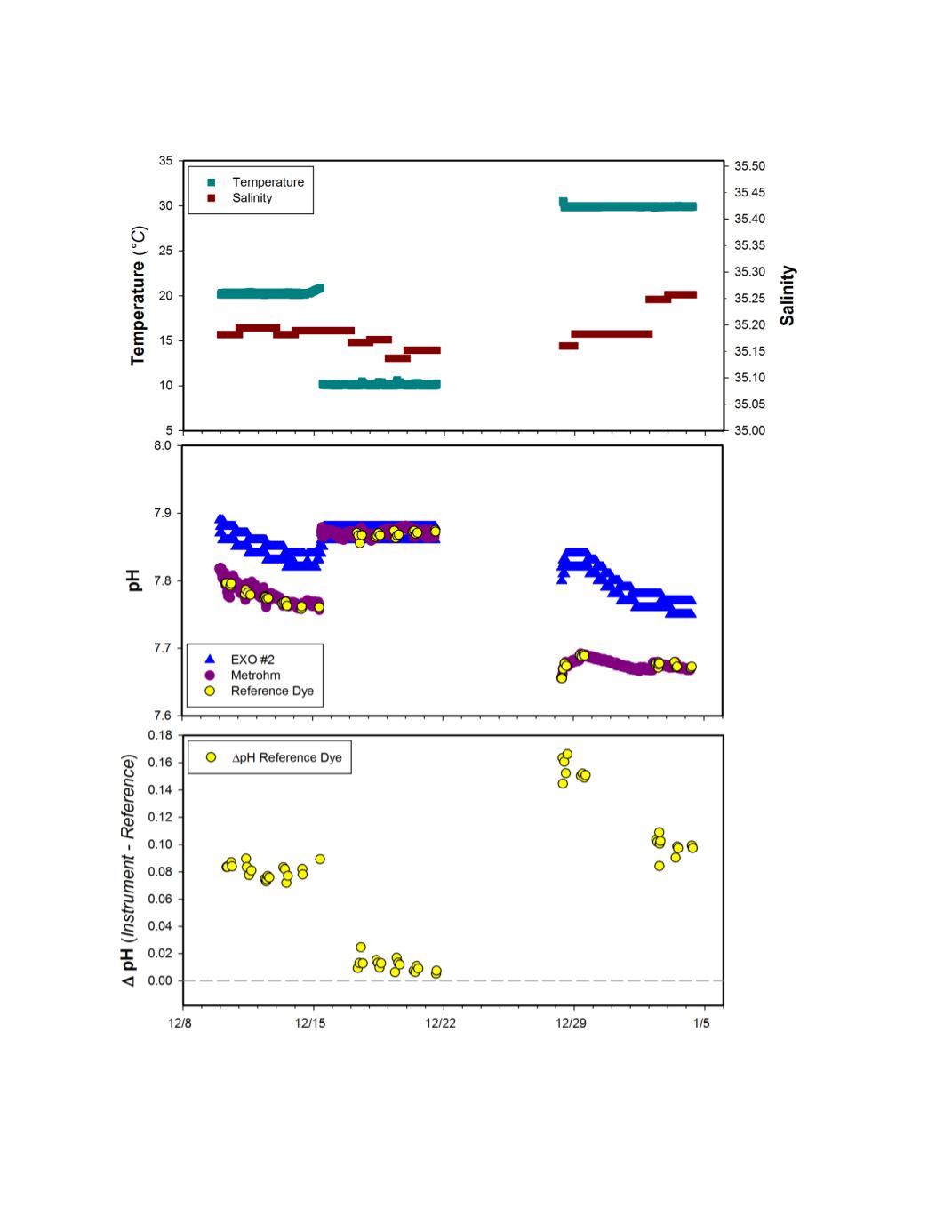

Figure 6.
Time series results of the Xylem EXO-pH2 sensor for the stable portion of the seawater
trials. Measurements taken during temperature and pH shifts have been removed. Panel (a)
temperature and salinity conditions during the seawater trials; panel (b) measured pH from the EXO-
pH2 plotted against both Metrohm and Dye reference pH measurements; and, panel (c) the difference
between EXO and reference pH values.
