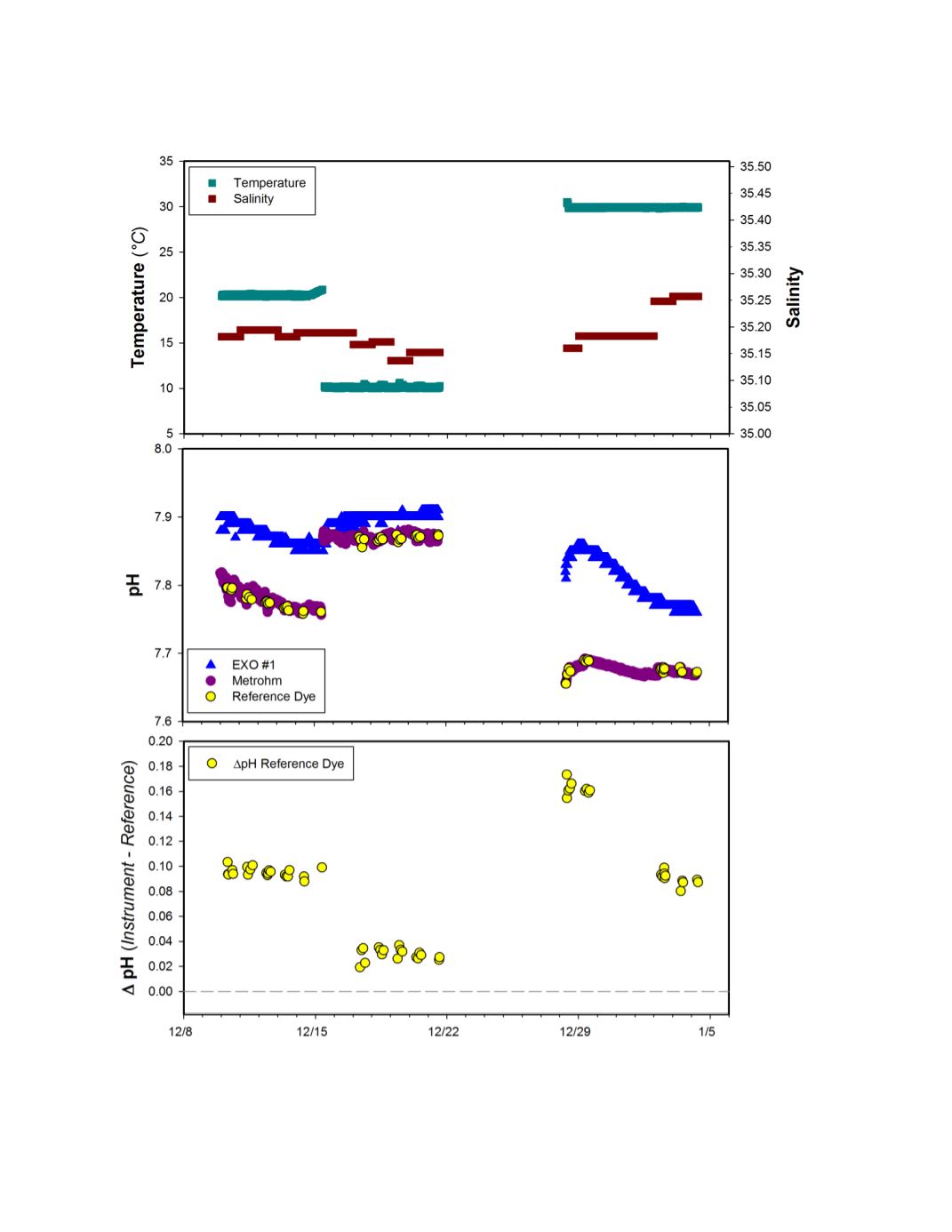

Figure 5.
Time series results of the Xylem EXO-pH1 sensor for the stable portion of the
seawater trials. Measurements taken during temperature and pH shifts have been removed. Panel
(a) temperature and salinity conditions during the seawater trials; panel (b) measured pH from the
EXO-pH1 plotted against both Metrohm and Dye reference pH measurements; and, panel (c) the
difference between EXO and reference pH values.
