33 / 63
Ref. No. [UMCES] CBL 2015-013
ACT VS15-06

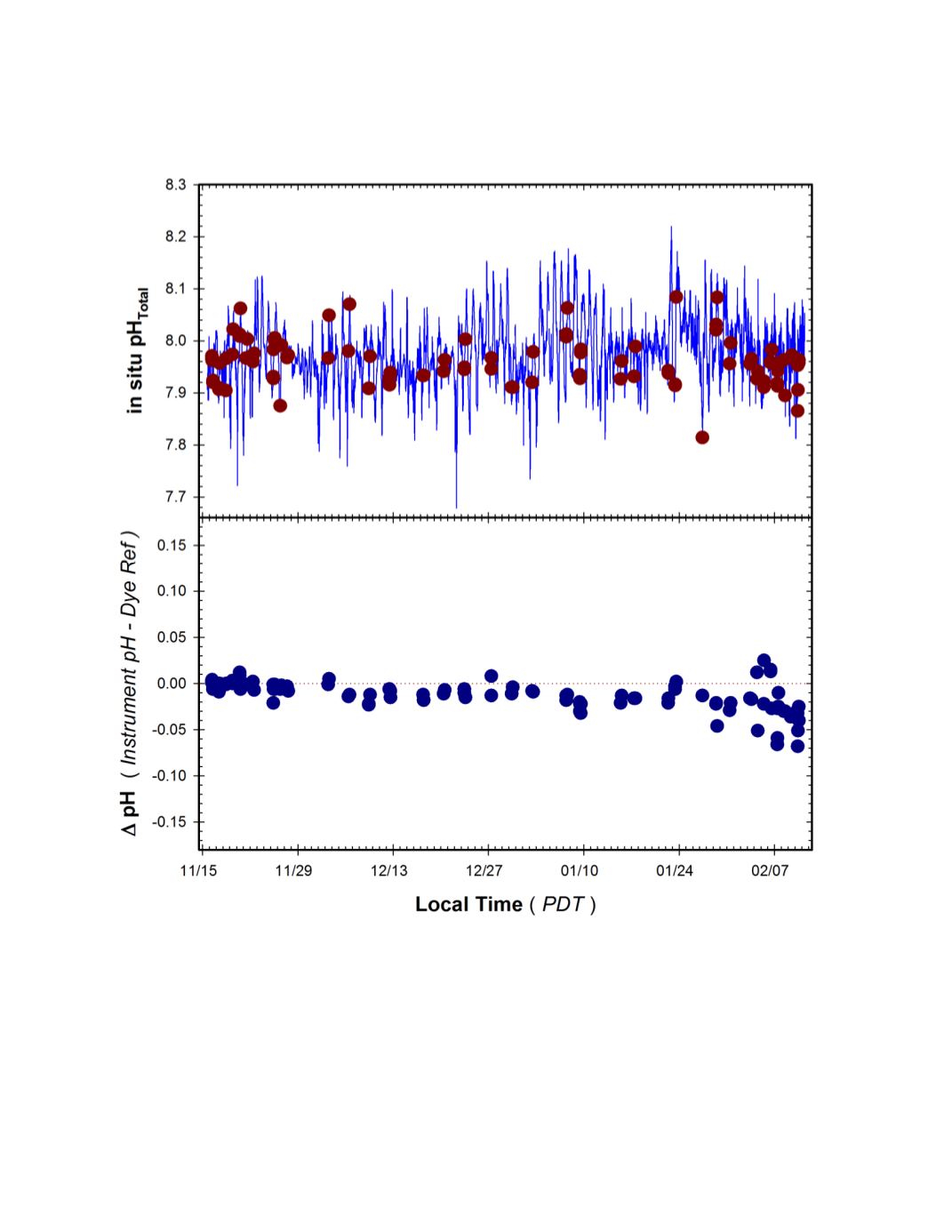

Figure 12.
Time series of pH measured by a SAMI-pH(mCP) instrument deployed during the 3 month
HIMB field trial.
Top Panel
: Continuous pH
Total
recordings from instrument (blue line) and pH
Total
of
adjacent grab samples determined by mCP dye (red circles).
Bottom Panel
: Difference in measured pH
relative to reference samples (Instrument – Dye Ref) observed during deployment. Zero offset is
represented by dashed line as pH
Total
scale is reported by the SAMI-pH sensor and the dye reference
method.
33
