Ref. No. [UMCES] CBL 2015-012

ACT VS15-05

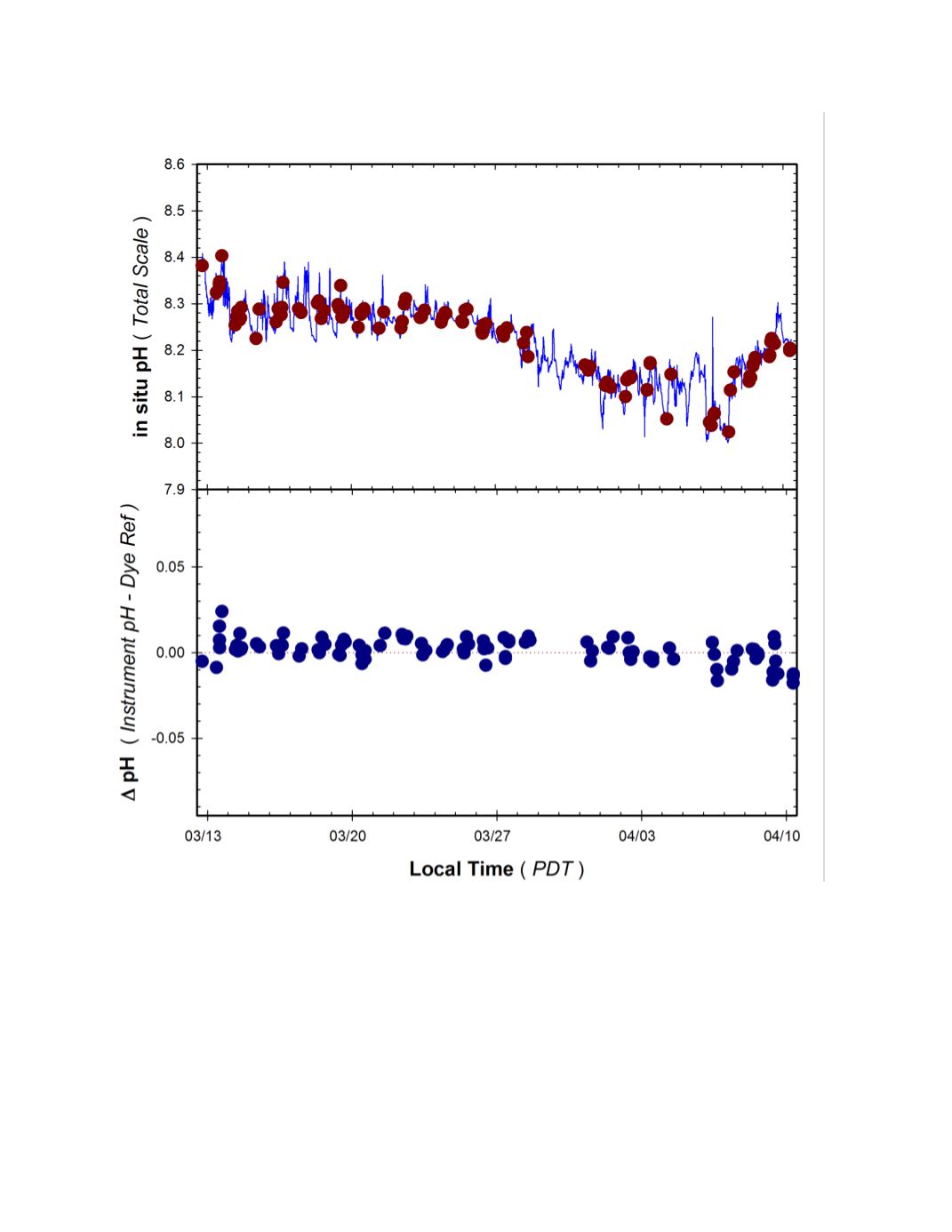

Figure 10.

Time series of pH measured by the SeaFET instrument deployed with SBE 5M pumping

system during the 1 month CBL field trial.

Top Panel

: Continuous pH

Total

recordings from instrument

(blue line) and pH

Total

of adjacent grab samples determined by mCP dye (red circles). Instrument values

are pHext corrected for ambient T and S using processing software provided with the SeaFET application.

Bottom Panel

: Difference in measured pH relative to reference samples (Instrument – Dye Ref) observed

during deployment. Zero offset is represented by dashed line as pH

Total

scale is reported the SeaFET pH

sensor and the dye reference method.
