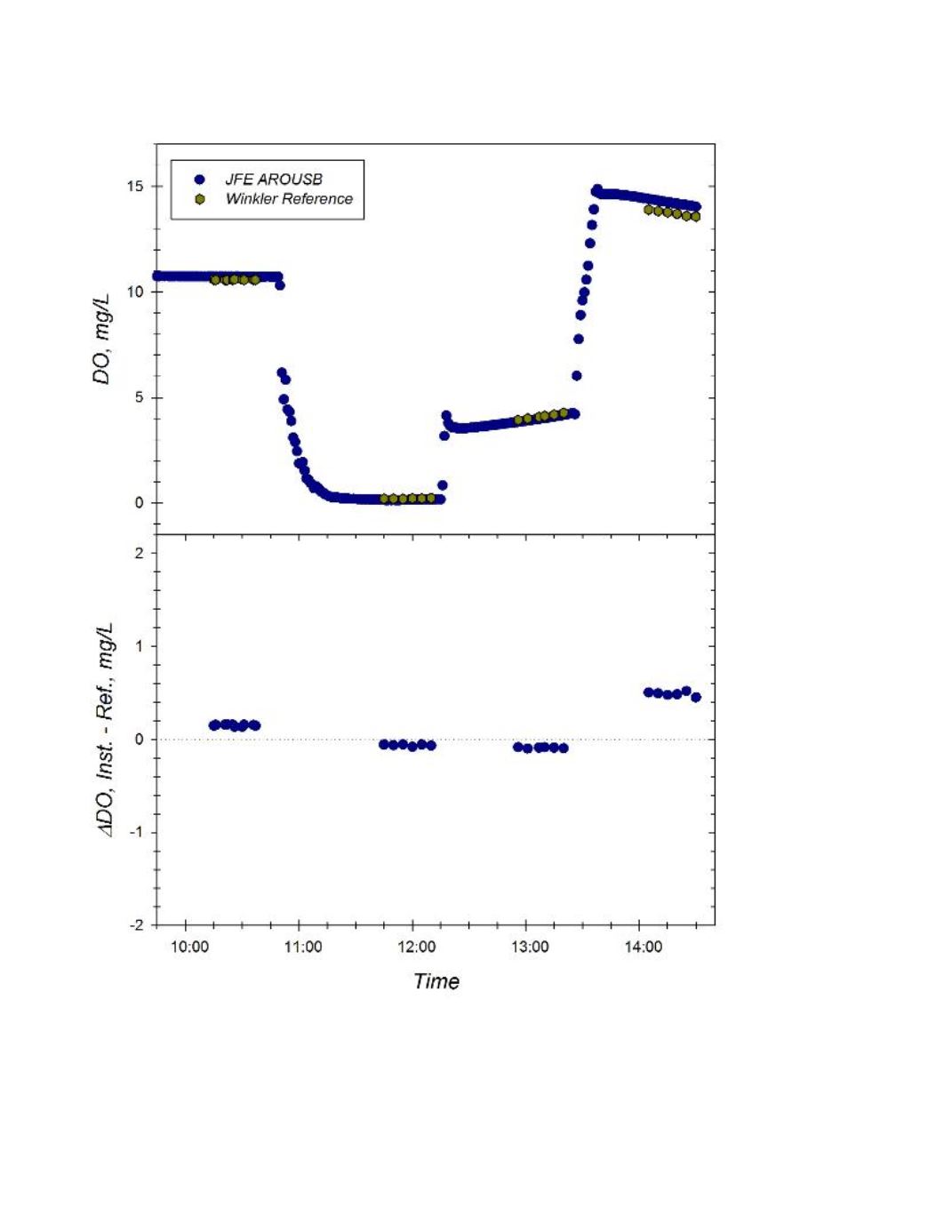

Figure F. Response of JFE AROUSB (sn 0091) to changing dissolved oxygen concentrations at 5.2 oC and S=34.77.
Top Panel : Time series of instrument readings and Winkler reference samples drawn at level of sensor foil in well-
mixed test tanks. Bottom Panel: Corresponding offset between instrument reading and Winkler DO reference
sample during the trial. Dotted line represents zero offset from reference. Offsets beyond 2 mg/L are excluded.
