Performance Verification Statement for the JFE AROUSB AND AROW-USB Dissolved Oxygen Sensors

20 / 73

Ref. No. [UMCES] CBL 2016-010
ACT VS16-01
20

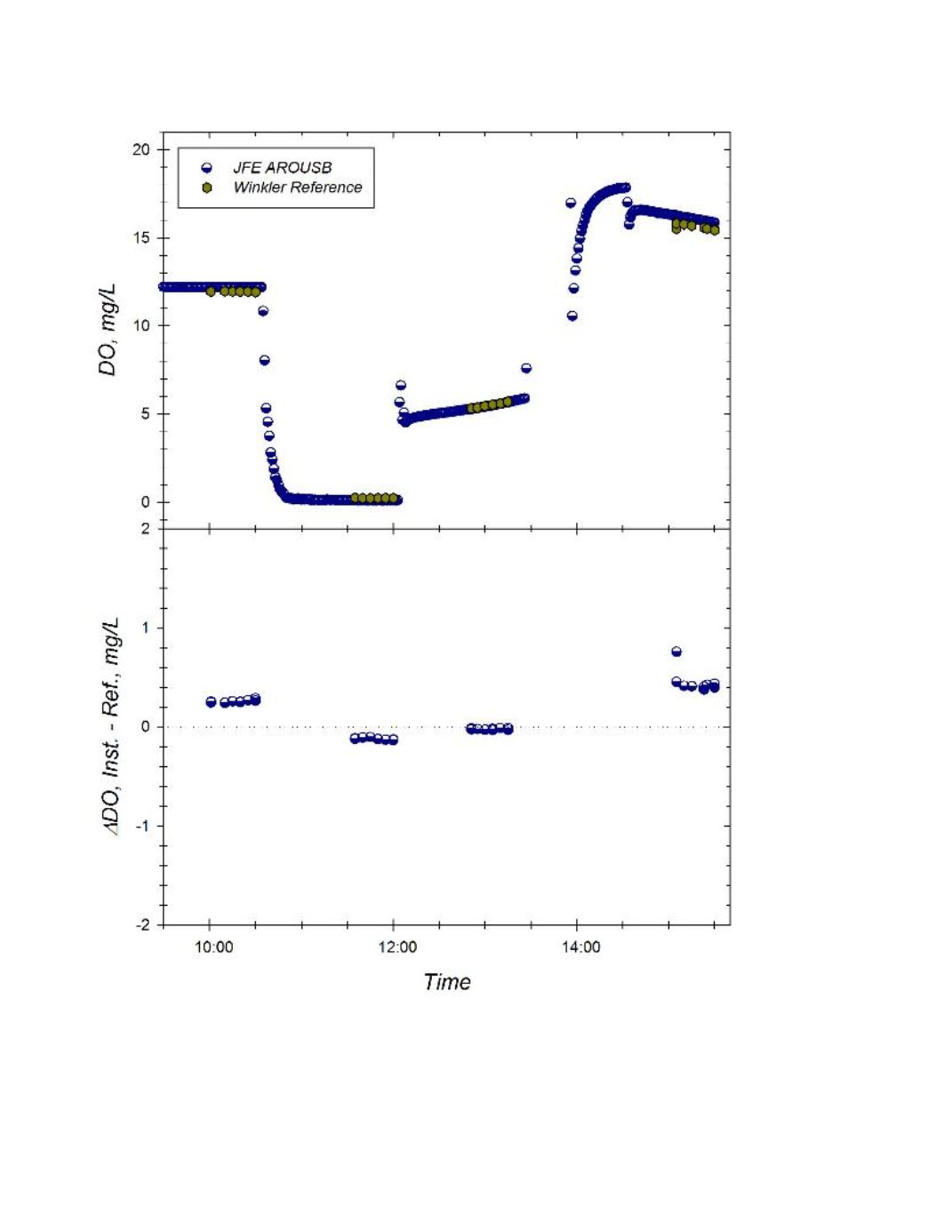

Figure E. Response of JFE AROUSB (sn 0091) to changing dissolved oxygen concentrations at 5.3 oC and S=8.98.
Top Panel : Time series of instrument readings and Winkler reference samples drawn at level of sensor foil in well-
mixed test tanks. Bottom Panel: Corresponding offset between instrument reading and Winkler DO reference
sample during the trial. Dotted line represents zero offset from reference.
