Performance Verification Statement for the JFE AROUSB AND AROW-USB Dissolved Oxygen Sensors

17 / 73

Ref. No. [UMCES] CBL 2016-010
ACT VS16-01
17

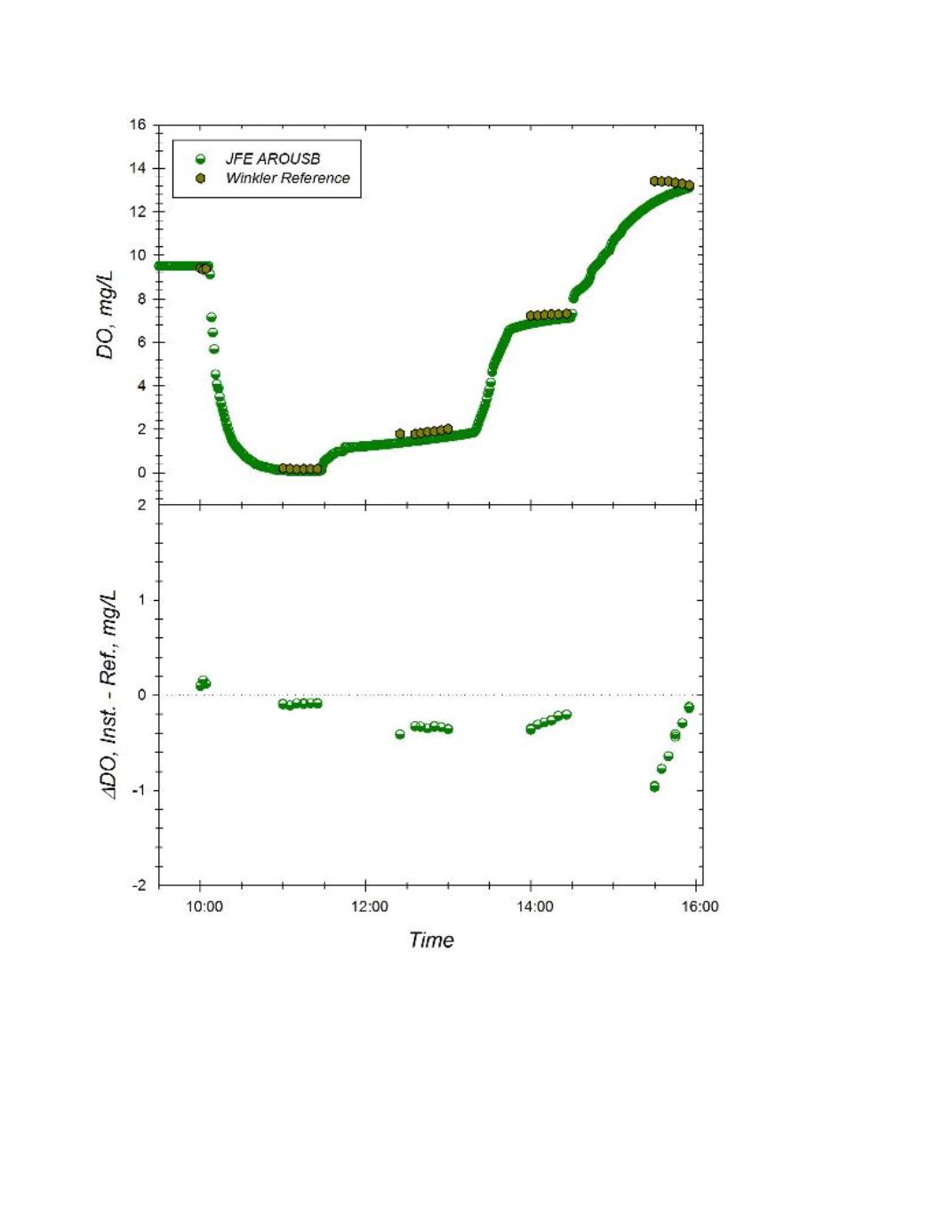

Figure B. Response of JFE AROUSB (sn 0091) to changing dissolved oxygen concentrations at 15.4 oC and S=8.82.
Top Panel : Time series of instrument readings and Winkler reference samples drawn at level of sensor foil in well-
mixed test tanks. Bottom Panel : Corresponding offset between instrument reading and Winkler DO reference
sample during the trial. Dotted line represents zero offset from reference.
