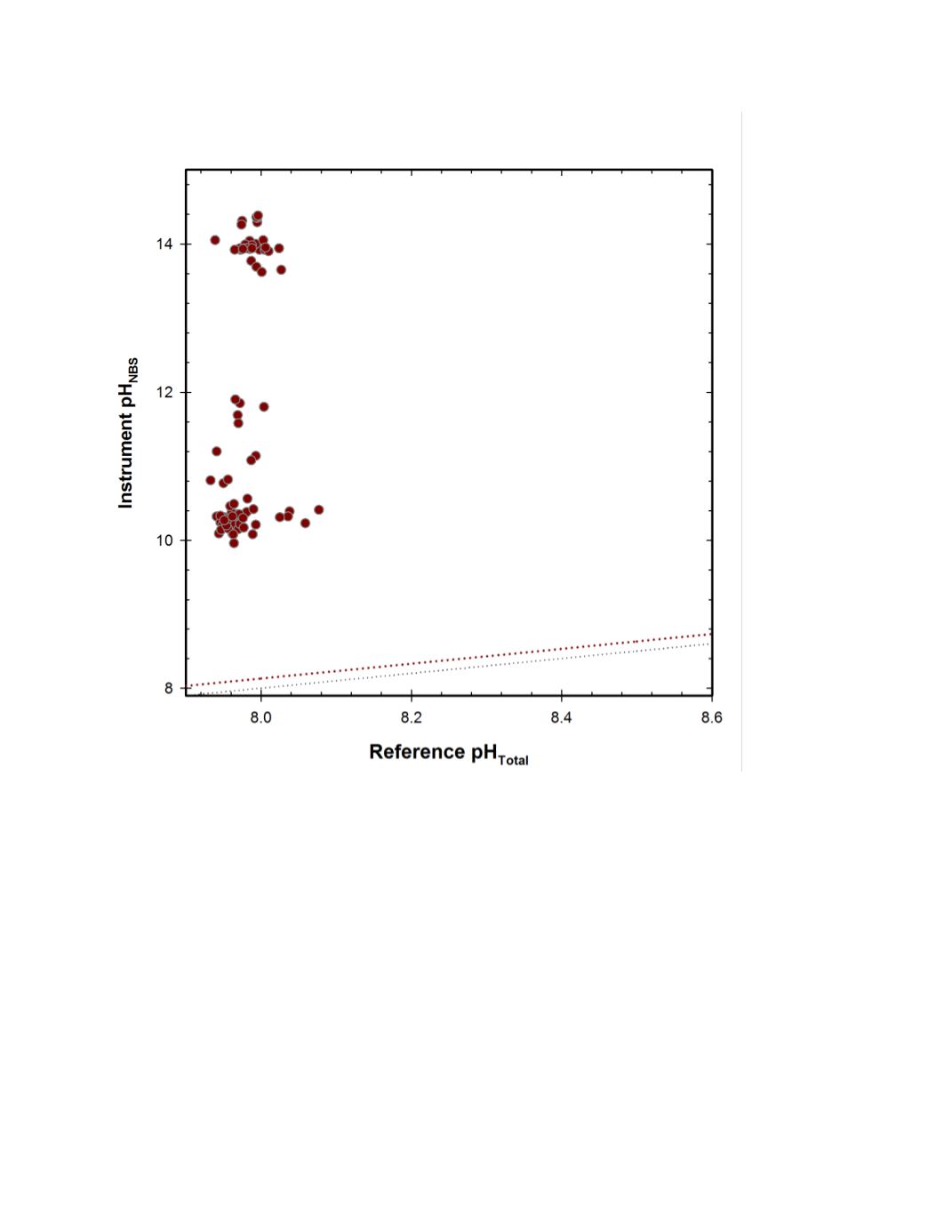

Figure 10.
MLML field response plot of Troll 9500 pH sensor compared to reference pH
Total
samples.
Fine dotted line represents 1:1 correspondence, coarse dotted line represents correspondence predicted
based on difference between pH
NBS
and pH
Total
in seawater (pH
NBS
= pH
Total
+ 0.13).
