Performance Verification Statement for the Hach Hydrolab DS5X and HL4 Dissolved Oxygen Sensors

21 / 59

Ref. No. [UMCES] CBL 2016-014
ACT VS16-05
21

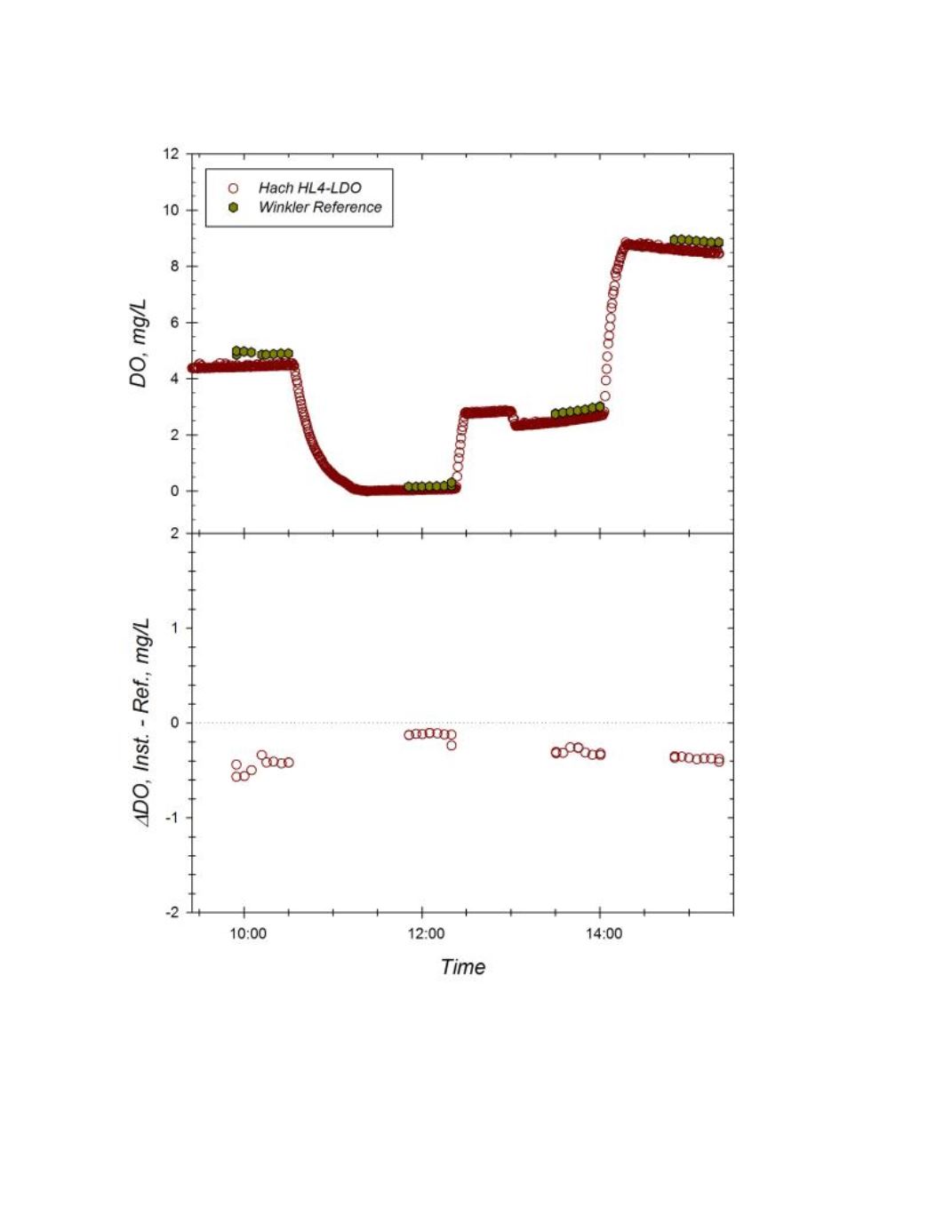

Figure G. Response of the Hach HL4 LDO (sn 0431) to changing dissolved oxygen
concentrations at 30.2 oC and S=0.00. Top Panel: Time series of instrument readings and Winkler
reference samples drawn at level of sensor foil in well-mixed test tanks. Bottom Panel:
Corresponding offset between instrument reading and Winkler DO reference sample during
exposure trial. Dotted line represents zero offset from reference.
