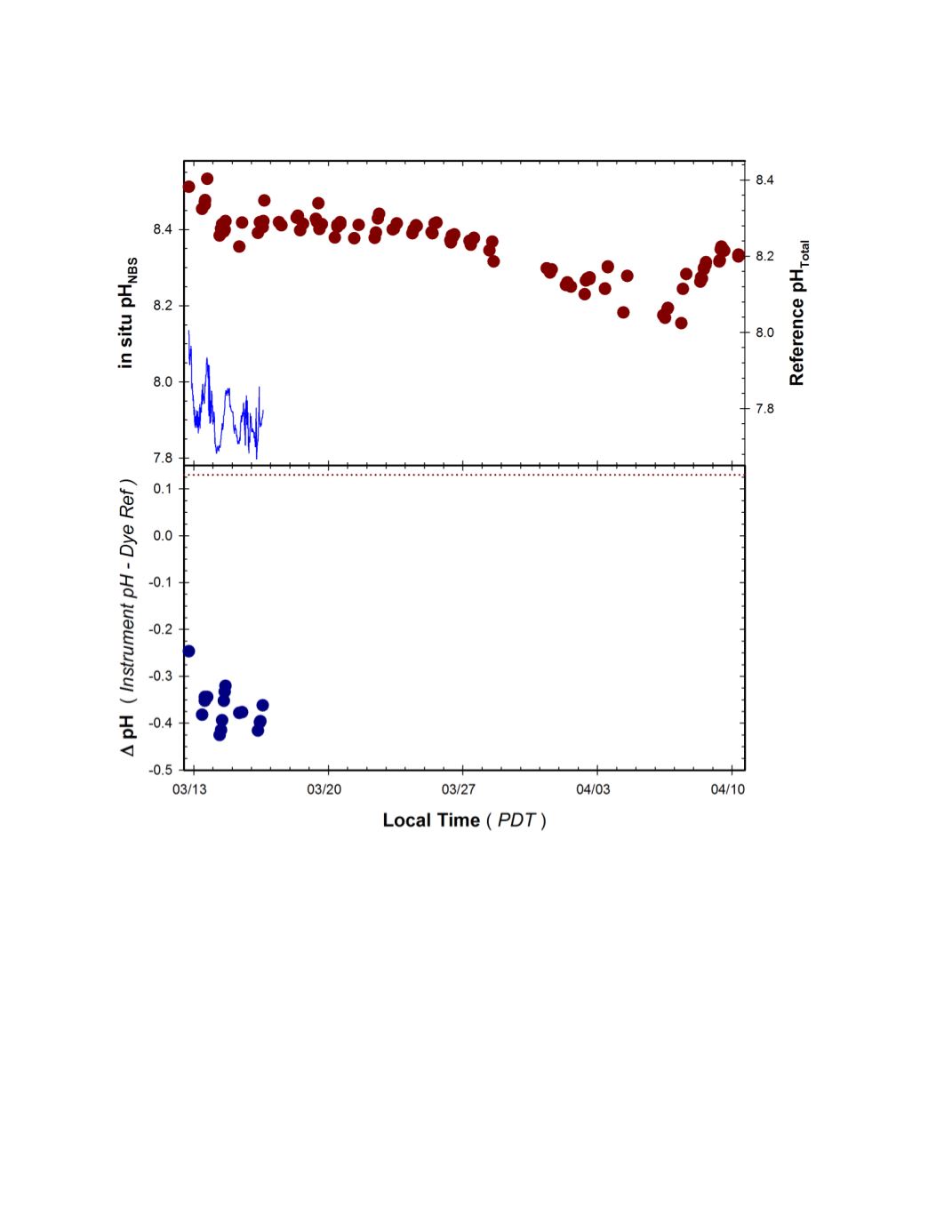

Figure 13.
Time series of pH measured by Idronaut 305 Plus pH sensor deployed during the 1 month
CBL trial.
Top Panel
: Continuous pH
NBS
recordings from instrument (blue line) and pH
Total
of adjacent
grab samples determined by mCP dye (red circles).
Bottom Panel
: Difference in measured pH relative to
reference samples (Instrument – Dye Ref) observed during deployment. Dashed line represent offset (ca
0.13) predicted due to difference in pH
NBS
and pH
Total
scales used by the Idronaut sensor and the dye
reference method.
