Performance Verification Statement for the Sea-Bird Scientific HydroCAT Dissolved Oxygen Sensors

16 / 53

Ref. No. [UMCES] CBL 2016-012
ACT VS16-03
16

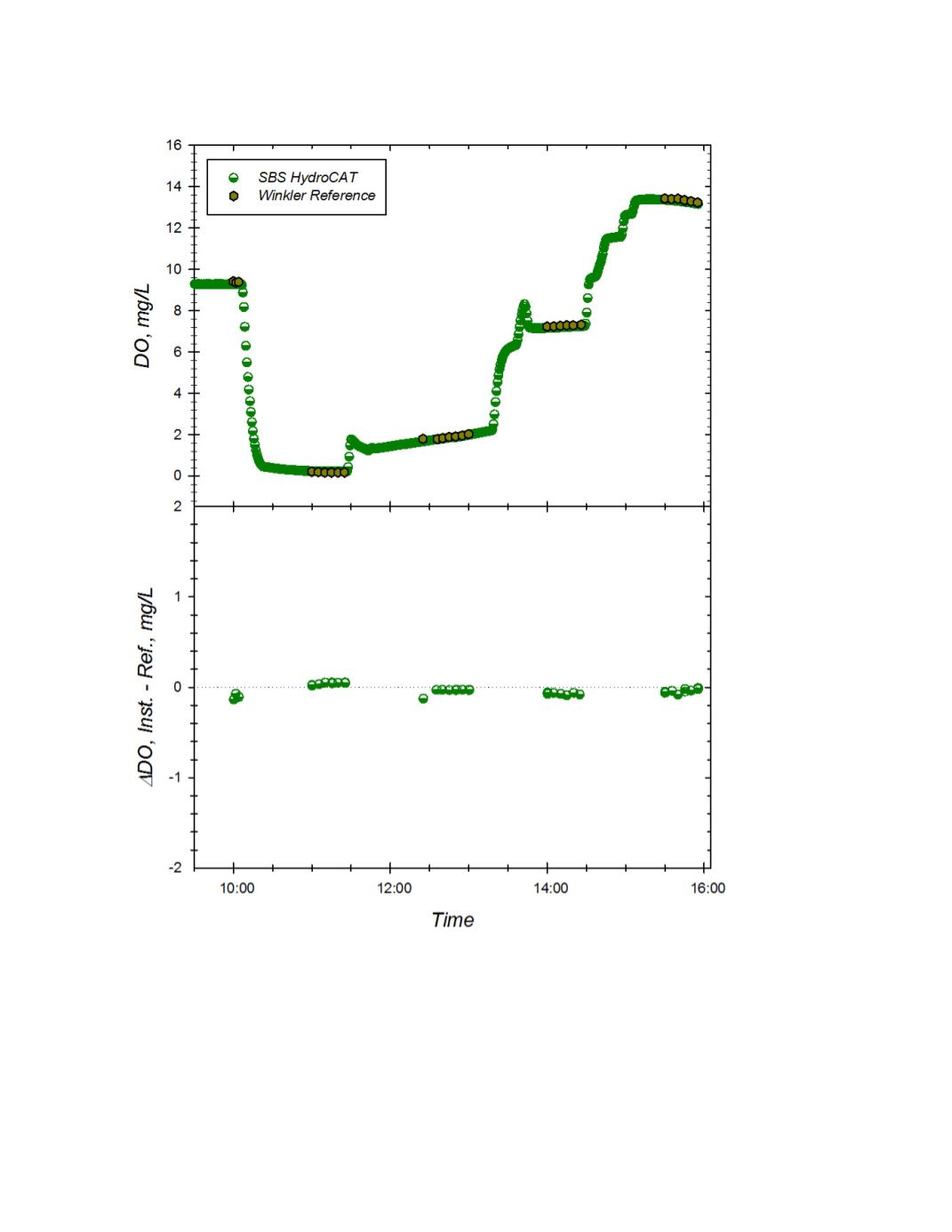

Figure B. Response of the SBS HydroCAT (SN 03710297) to changing dissolved oxygen
concentrations at 15.4 oC and S=8.82. Top Panel: Time series of instrument readings and Winkler
reference samples drawn at level of sensor foil in well-mixed test tanks. Bottom Panel:
Corresponding offset between instrument reading and Winkler DO reference sample during
exposure trial. Dotted line represents zero offset from reference.
