Ref. No. [UMCES] CBL 2016-013

ACT VS16-04

19

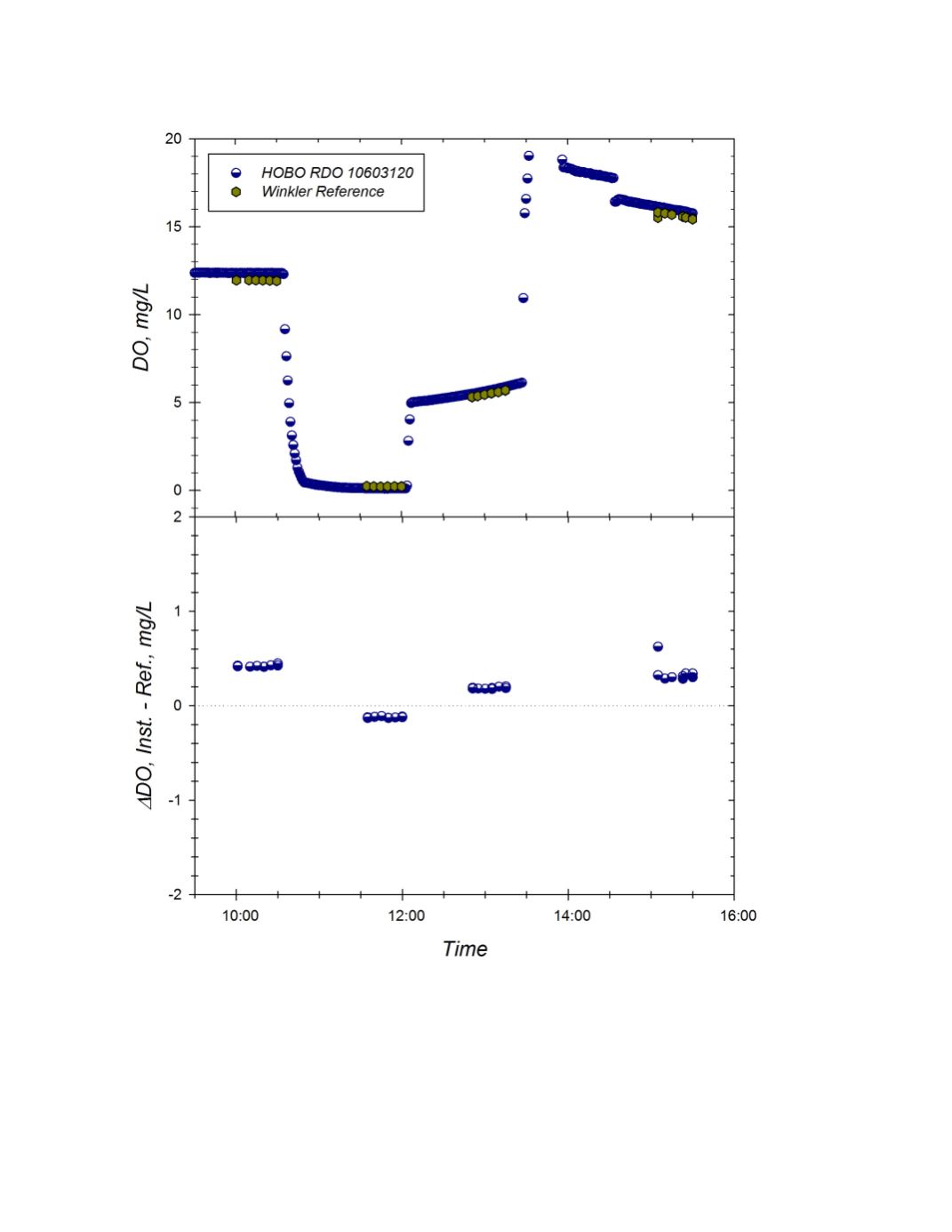

Figure E.

Response of the Onset HOBO logger with RDO (sn 10603120) to changing dissolved

oxygen concentrations at 5.3

o

C and S=8.98.

Top Panel

: Time series of instrument readings and

Winkler reference samples drawn at level of sensor foil in well-mixed test tanks.

Bottom Panel

:

Corresponding offset between instrument reading and Winkler DO reference sample during

exposure trial. Dotted line represents zero offset from reference. Delta plots limited to ± 2 mg/L

for clarity. Instrument reads were adjusted to bath salinity using HOBOware’s DO Assistant

processing feature.
