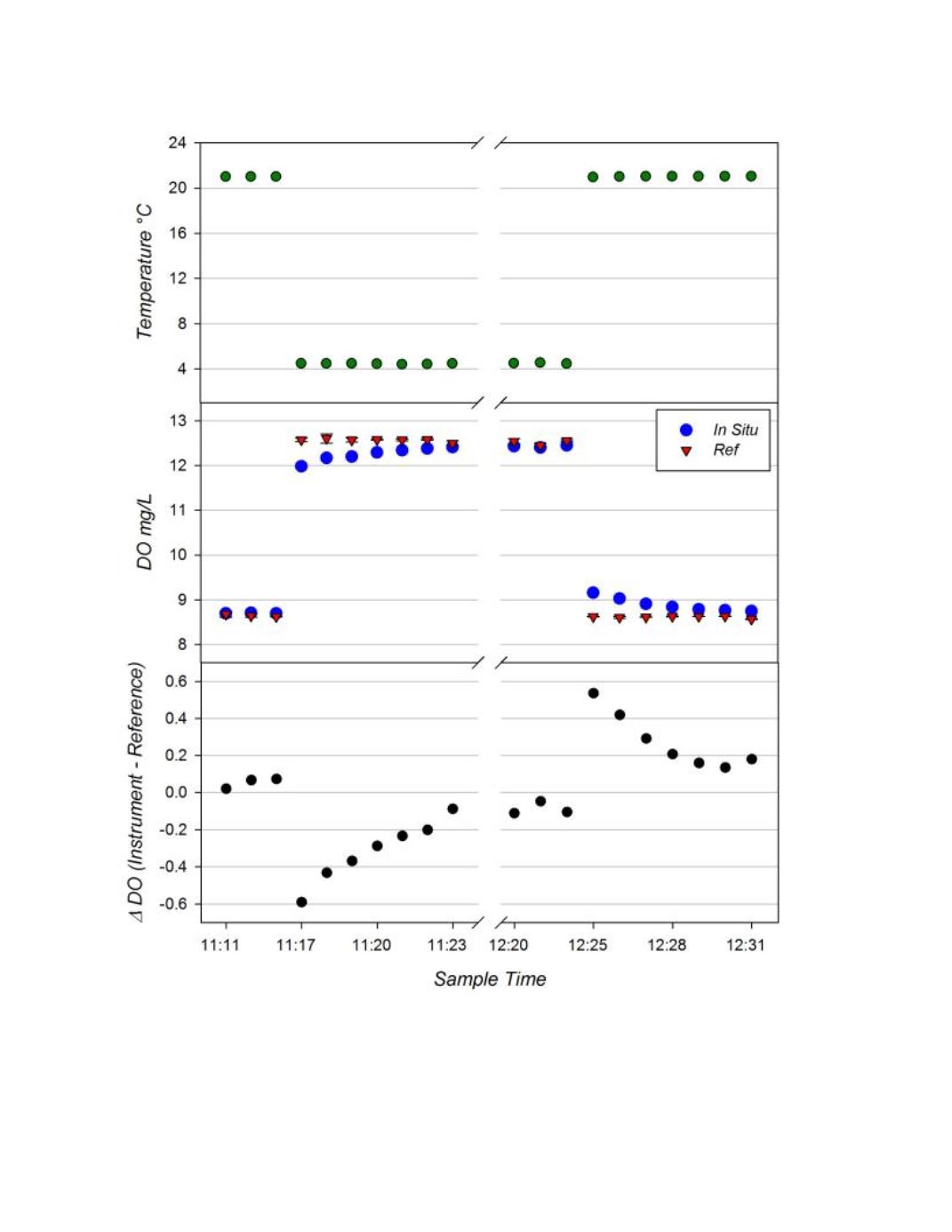

Figure 16. Results of the Troll 9000 for the Lake Michigan trials.
Top panel:
Troll 9000 temperature data
at sample snap.
Middle panel:
DO recordings from instrument (blue dot) and DO of adjacent sample snaps
determined by Winkler Titrations (red triangles.)
Bottom panel:
Time series of the difference between the
Troll 9000 and reference measurements for each matched pair. Cast 1 and 2 are plotted on the same graph
and separated by the axis break.
