Ref. No. [UMCES] CBL 2016-012
ACT VS16-03
23

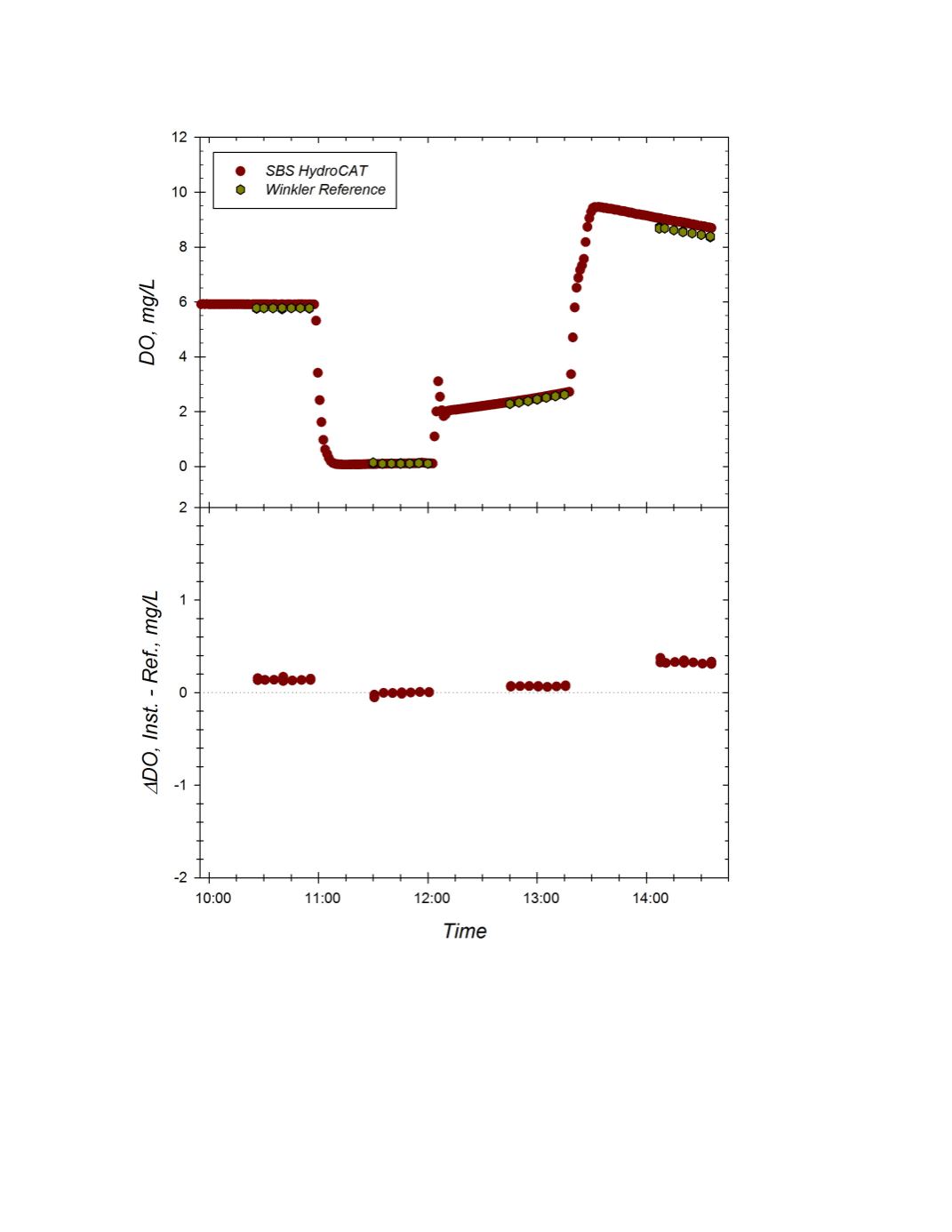

Figure I.
Response of the SBS HydroCAT (SN 03710297) to changing dissolved oxygen
concentrations at 30.6
o
C and S=34.43.
Top Panel
: Time series of instrument readings and
Winkler reference samples drawn at level of sensor foil in well-mixed test tanks.
Bottom Panel
:
Corresponding offset between instrument reading and Winkler DO reference sample during
exposure trial. Dotted line represents zero offset from reference
