Ref. No. [UMCES] CBL 2016-015
ACT VS16-06
24

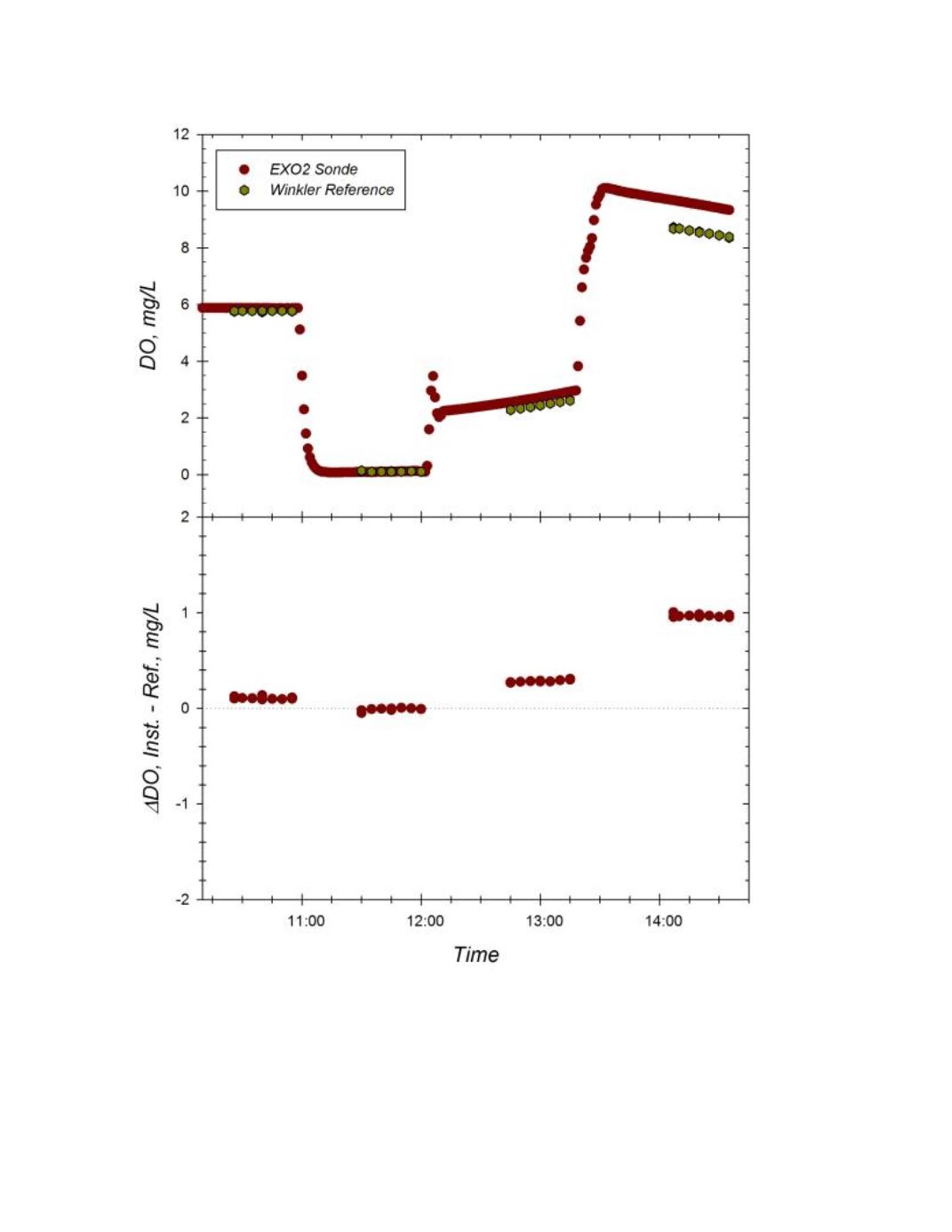

Figure I.
Response of EXO2 Sonde with Optical DO (sn 14J103998) to changing dissolved oxygen
concentrations at 30.6
o
C and S=34.43.
Top Panel
: Time series of instrument readings and Winkler
reference samples drawn at level of sensor foil in well-mixed test tanks.
Bottom Panel
: Corresponding
offset between instrument reading and Winkler DO reference sample during exposure trial. Dotted line
represents zero offset from reference.
