Performance Verification Statement for the Chelsea UviLux Fluorometer - page 30

Ref. No. [UMCES]CBL 2013-015
ACT VS12-02
Instrument Photographs
Before and after photos were taken of the instrument to examine the extent and possible
impacts of bio-fouling (Photo 8.)
UviLux HC Prior to 1
st
Deployment
UviLux HC Prior to 2nd Deployment
UviLux CDOM Prior to 1
st
Deployment
UviLux HC after Deployment

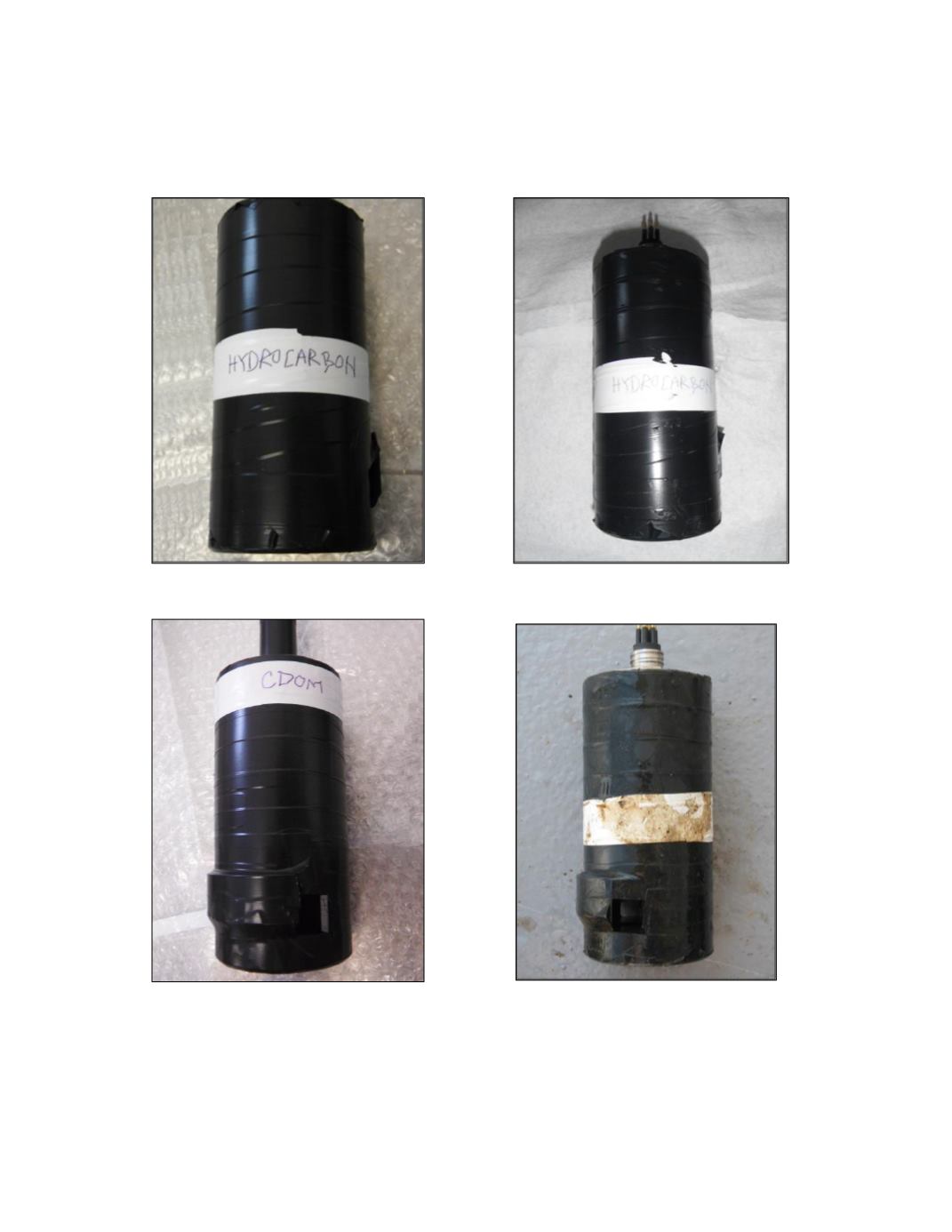

Photo 8.
Chelsea UviLux HC and CDOM instrument photos from Baltimore Harbor test site before and after
deployments. The UviLux CDOM was damaged beyond repair and was not redeployed.
29
