Ref. No. [UMCES] CBL 2016-011
ACT VS16-02
51

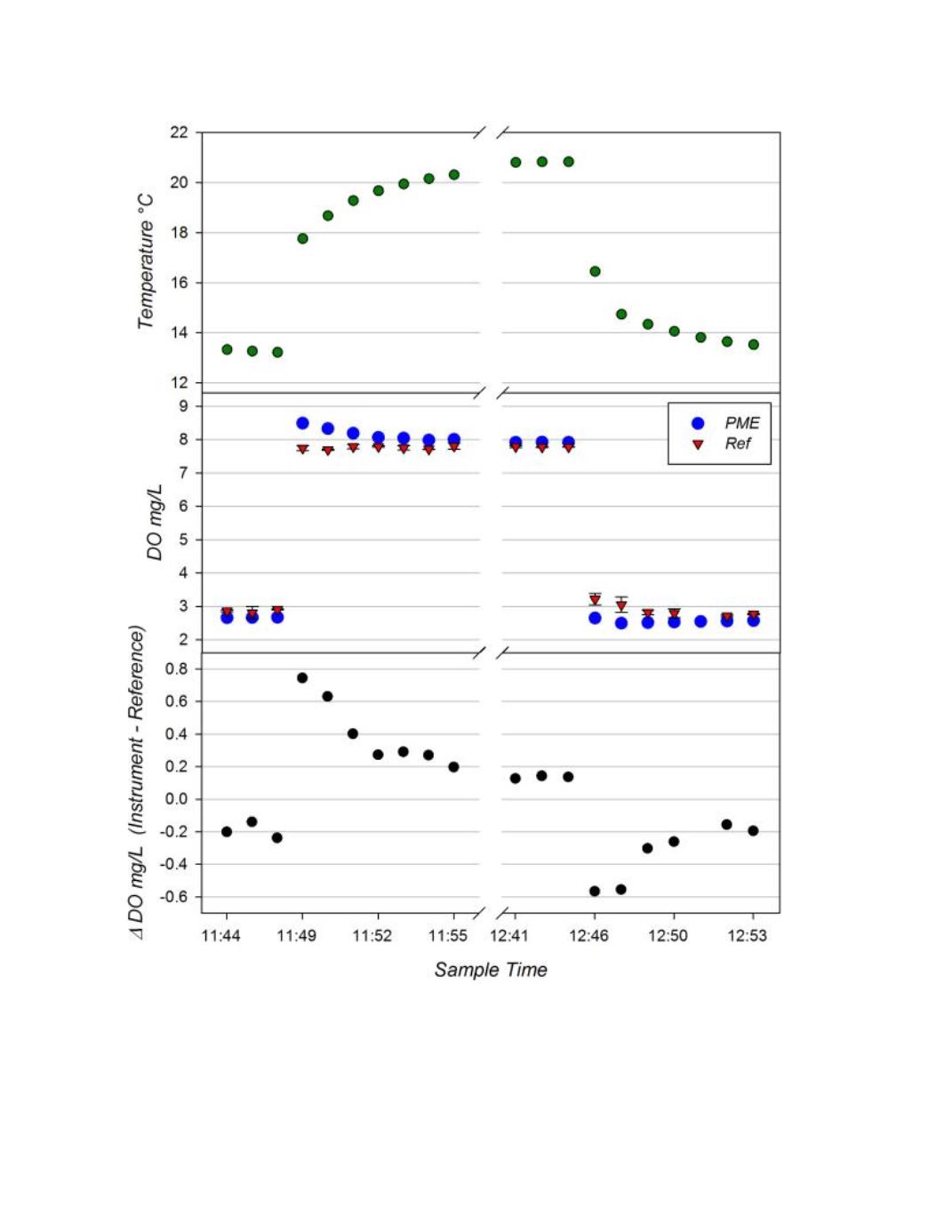

Figure 15. Results of the PME miniDOT for the Muskegon Lake trials.
Top panel:
PME temperature data
at sample snap.
Middle panel:
DO recordings from instrument (blue dot) and DO of corresponding
reference samples determined by Winkler Titrations (red triangles.)
Bottom panel:
Time series of the
difference between the PME and reference measurements for each matched pair. Cast 2 and 3 are plotted on
the same graph and separated by the axis break. Bottle 8 on cast 3 did not close fully and was discarded.
