Ref. No. [UMCES] CBL 2016-015

ACT VS16-06

16

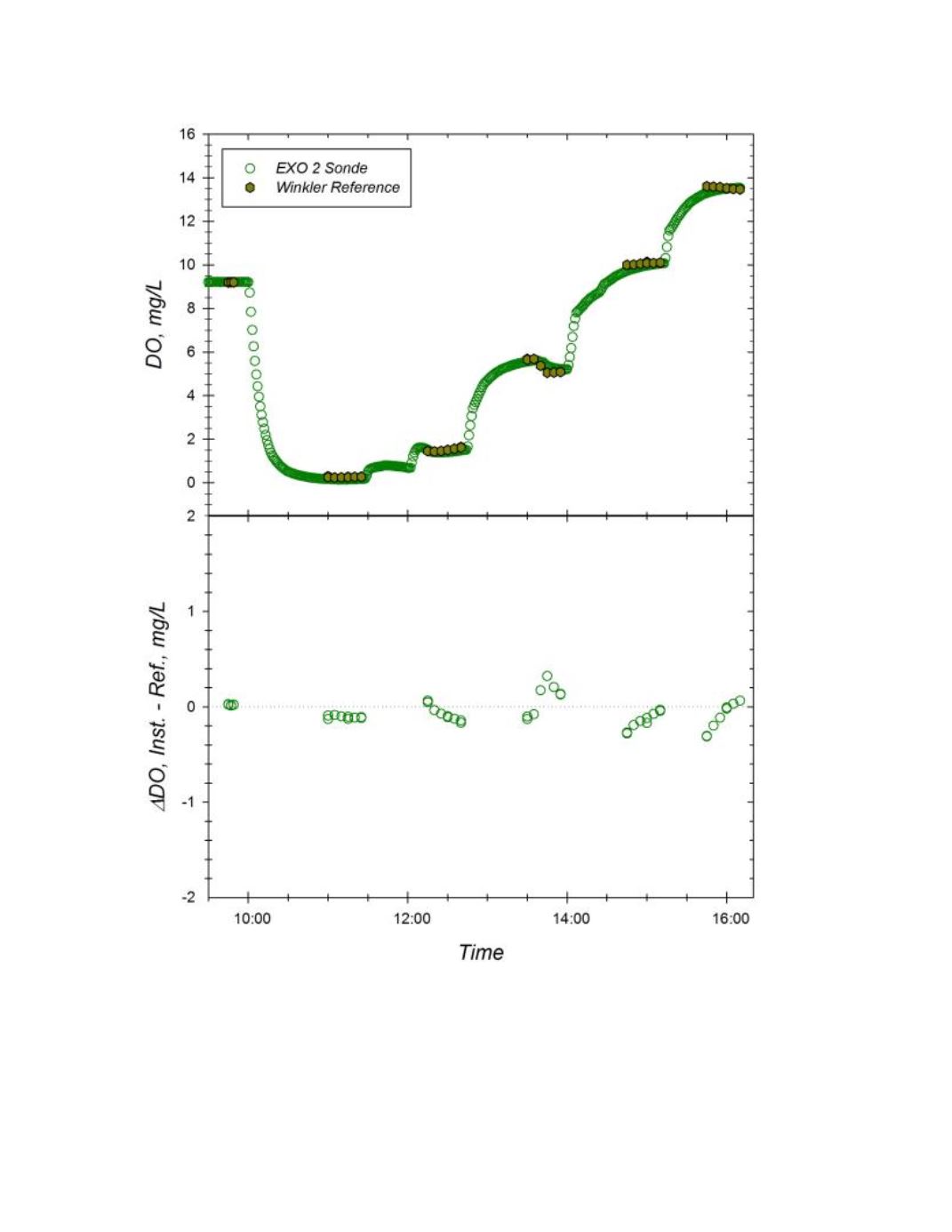

Figure A.

Response of EXO2 Sonde with Optical DO (sn 14J103998) to changing dissolved oxygen

concentrations at 15.4

o

C and S=0.00.

Top Panel

: Time series of instrument readings and Winkler reference

samples drawn at level of sensor foil in well-mixed test tanks.

Bottom Panel

: Corresponding offset

between instrument reading and Winkler DO reference sample during exposure trial. Dotted line represents

zero offset from reference.
